The right power supply is often the unsung hero of any efficient system, quietly and reliably ensuring all other components perform at their best.
For professionals involved in designing or maintaining such systems, understanding the intricacies of different power supply types is critical to maximizing efficiency and ensuring long-term reliability.
Among the array of power supply solutions, DC-DC power supplies are a unique subset that plays a vital role in various applications, from telecommunications to industrial automation, and even in automotive and medical equipment. How do DC power supplies work, though? And how can you make sure you get the right one for your operation?
This comprehensive guide will take you through the inner workings of DC-DC power supplies, explaining their purpose, functionality, and how to choose the right one for your unique needs.
We’ll also shed light on the extensive range of high-quality DC-DC converters available at Bravo Electro, a trusted partner to professionals seeking tailored power supply solutions. That being said, let’s start with a brief overview of what these are in the first place.
What are DC-DC Power Supplies?
So, what is a DC-DC converter? These serve a very specific but crucial function in electronic systems. Instead of helping you convert DC to AC, they convert the level of a DC voltage into another level of DC voltage.
This ability is essential in a variety of contexts where the output voltage needed by a device or system is different from the power supply voltage that is available.
Take, for instance, a battery that provides a certain DC voltage, but the electronic device it is supposed to power requires a different voltage level for optimal operation. This is where a DC-DC converter steps in, adjusting the voltage to a suitable level.
While they might seem simple in their purpose, DC-DC converters are quite intricate in their operation, and the level of sophistication depends on the specific type of converter.
Whether they’re stepping down voltage (buck converters), stepping it up (boost converters), or doing both depending on the situation (buck-boost converters), these devices play an essential role in ensuring the smooth and efficient operation of a wide range of electronic systems.
If you want to explore the basics of power supply in greater detail, check out our article on the difference between AC and DC power. Otherwise, let’s get into the different types of DC-DC converters.
Different Types of DC-DC Converters
You may be wondering…what power supply do I need? Before we can offer insights there, we need to unpack the four main types you’ll come across as you start shopping.
There's a variety of DC-DC converters each with its unique properties and applications: buck converters, boost converters, buck-boost converters, and isolated converters.
Buck Converters
Buck converters, or step-down converters, are designed to reduce an input voltage to a stable, lower output voltage. They operate using a DC/DC switching mode, offering highly efficient energy transfer, often exceeding 95%.
A simplified perspective of a buck converter's function would be like a dam in a river, controlling the flow (or in this case, voltage) downstream.
The key components of a buck converter - inductor, diode, capacitor, and a power switch - manage the flow of current during switching events.
This style is preferred over traditional linear regulators, especially in low-voltage applications such as microprocessors, communication equipment, and control systems due to their superior efficiency.
Boost Converters
In contrast to buck converters, boost converters are designed to increase the input voltage to a higher, stabilized output voltage. This mechanism makes them a perfect solution when a supply voltage needs to be 'boosted' to cater to a device requiring a higher voltage.
While boost converters utilize the same primary components as buck converters, they're arranged differently to facilitate the voltage increase. The output voltage is adjusted based on the duty cycle of the pulse width modulation (PWM) signal.
It's important to note that while the voltage increases, the current supply decreases correspondingly, adhering to the principle of power conservation. Boost converters are notably prevalent in battery-powered devices requiring a voltage supply higher than the battery output.
Buck-Boost Converters
Buck-boost converters cleverly combine the principles of both buck and boost converters, allowing them to supply a regulated output voltage from a source that can be either below or above the desired output.
This versatility is especially useful in scenarios where input voltage isn't stable and may fluctuate above or below the required output voltage.
It's worth mentioning, however, that buck-boost converters often have a larger footprint compared to standalone buck or boost converters and may require more costly components due to their dual-function nature. One common use case for buck-boost converters is in high-power LED lighting systems powered by batteries.
Isolated Converters
Isolated converters, as the name suggests, provide electrical isolation between the input and output voltage. This separation helps protect the circuits and devices from electrical noise, voltage spikes, and surges. This makes them an excellent choice for systems that prioritize high reliability and safety, such as medical devices and industrial controls.
Each type of DC-DC converter has its unique strengths and ideal applications. Understanding these differences is crucial in selecting the right power supply for your specific needs. But, you came here wondering - how do DC power supplies work? So with a better understanding of what these are, let’s get into it.
How Do DC Power Supplies Work?
So, how do DC power supplies work? DC-DC power supplies operate on a simple yet intricate process that ensures the output voltage is maintained at the desired level.
This process can be dissected into three main stages: the input stage, the switching stage, and the output stage.
Input Stage
The Input stage is where everything begins. In this stage, the input voltage is received from the power source. It could be from a battery, solar panel, or any other DC source. This input voltage is the ‘raw material’ that will be manipulated to produce the desired output voltage.
However, the input voltage isn't always stable. It could fluctuate due to various reasons such as inconsistent power source or environmental factors.
To protect the entire DC-DC power supply from these fluctuations, filters are used at the input stage. These filters stabilize the input voltage, making it safe for the next stage.
Switching Stage
Following the input stage is the switching stage. This is where the actual conversion takes place. Based on the type of the DC-DC converter, the switching stage will either step-up (boost), step-down (buck), or both (buck-boost) the input voltage.
In all these converters, a vital component called the power switch controls the current flow to the output stage. It does this by rapidly switching on and off, creating a ‘pulsating’ direct current. This switching process is the heart of DC-DC power supplies and is what makes them so efficient at energy transfer.
Output Stage
Finally, we arrive at the output stage. Here, the pulsating current from the switching stage is smoothed out using a combination of inductors and capacitors, known as a low-pass filter. This filter removes high-frequency noise and provides a steady, stable DC output voltage.
However, it's crucial to have a feedback loop that continuously monitors the output voltage and adjusts the switching duty cycle to maintain the desired output voltage. This ensures that regardless of changes in the input voltage or load on the output, the DC-DC converter consistently delivers the required output.
If you want to explore the inner-workings of power supply units more in-depth check out our related article - how does a switching power supply work? For now, though, we want to help you choose the right DC-DC power converter for your unique needs.
Tips for Choosing the Right DC-DC Power Supply For Your Unique Needs
Choosing the right DC-DC power supply can make a significant difference in the efficiency and reliability of your system. The key is understanding your unique needs and selecting a power supply that matches those requirements. Here are some crucial aspects to consider:
Input and Output Voltage Requirements
You need to ensure that the power supply can handle your system's input voltage and provide the required output voltage. An oversight here can lead to system instability or even component damage.
Power Demand of the System
It's essential to factor in the peak power requirements, not just the average power usage, especially for systems with components like motors that draw high power at startup.
A power supply with sufficient capacity will handle these peak loads without straining, ensuring longevity and consistent performance. It’s also important to consider power supply efficiency rating.
Environmental Conditions and Form Factor
Considering where the power supply will be installed is crucial too. Does it need to withstand high temperatures, moisture, or dust? For challenging environments, consider a power supply with ingress protection.

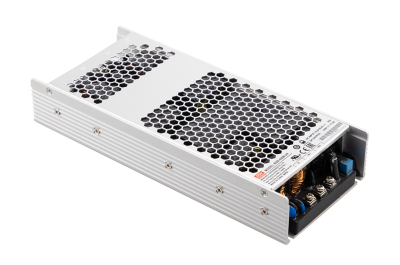

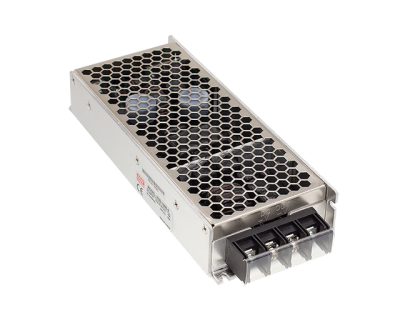

Moreover, the physical size and mounting method also matter. DC-DC converters come in various form factors like open frame, din rail, on-board, and enclosed, each suitable for different applications.

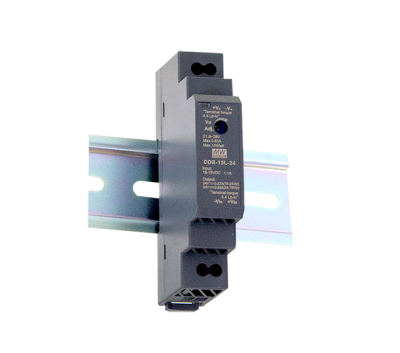

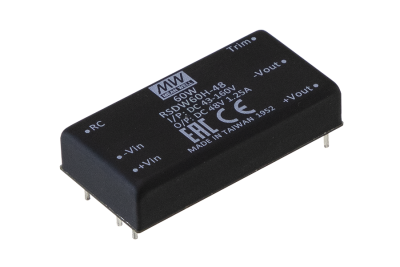

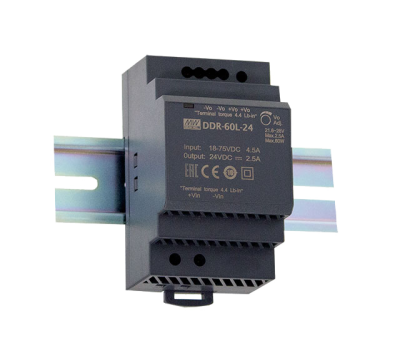

For instance, DIN rail DC-DC power supply are ideal for industrial settings with modular equipment setups, while on-board converters are perfect for space-constrained electronics.
If this is something you don’t feel confident navigating on your own, don’t hesitate to reach out to us at Bravo Electro. But let’s take a moment to talk about safety and certifications to consider along the way.
Safety and Certification Considerations
Safety should never be compromised. Ensure your power supply complies with industry safety standards and carries the necessary certifications.
For a medical DC-DC power supply in particular, special safety standards apply. This includes the IEC60601, aimed at ensuring patient and operator safety in medical environments.
You can learn more about power supply certification in our blog, where we have detailed resources on UL listed power supplies, class ii power supply, and other critical power supply specifications to consider. But really, you can save yourself a lot of hassle and headache by simply reaching out to us at Bravo Electro.
Let Bravo Electro Help You Find the Right PSU!
Choosing a DC-DC converter can seem overwhelming with all these considerations. But, with Bravo Electro, you're never alone in this journey. Our expert team is dedicated to helping you find the ideal power supply tailored to your unique needs - and we are eager to help you demystify this process.
We offer a wide array of DC-DC power supplies that cater to various industries, from automotive to aerospace, robotics, and even medical applications. Trust us to guide you in selecting a power supply that delivers efficient, reliable, and safe power for your system.
Whether you’re looking for a 12v DC converter, 24v DC converter, 48v DC converter, or even a standard 12v DC power supply, 24v DC power supply, 48v DC power supply - you’ll find a reliable, efficient, and affordable solution at Bravo Electro. And with that said, it’s time we brought this conversation on how DC-DC power supplies work to a close.
Final Thoughts on How DC-DC Power Supplies Work
So, how do DC power supplies work? Hopefully, this quick breakdown has given you the clarity you were searching for.
DC-DC power supplies are engineering marvels that allow us to harness and utilize power effectively and efficiently. They provide the backbone for countless systems and devices, from the smallest gadgets to industrial machinery.
By understanding how they work, you gain an appreciation for their role and the importance of choosing the right one for your needs. You can learn more in our blog about the magic of power supply, including resources on the signs of power supply failure, the average power supply lifespan, advice on trouble shooting power supplies, and tips for installing new power supply units.
Bravo Electro remains committed to providing quality, efficient, and safe power supply solutions for all. From a modular power supply to high voltage supplies for industrial uses, we’ve got it all - from the most trusted manufacturers in the world. Experience the Bravo Electro difference and discover your ideal DC DC power converter today!
