Mean Well UHP-1500-380 (1501W 380V)
SKU
UHP-1500-380
Authorized MEAN WELL
Stocking Distributor
$410.40
- Buy 5 for $391.00 each and save 5%
- Buy 10 for $373.70 each and save 9%
- Buy 20 for $362.90 each and save 12%
MEAN WELL Single Output, Industrial AC-DC Converter, Enclosed Package, 1501 Watts, Input Voltage Range: 90~264VAC, Output Voltage: 380VDC, Output Current: 4A, Connection: Screw Terminal
More Details

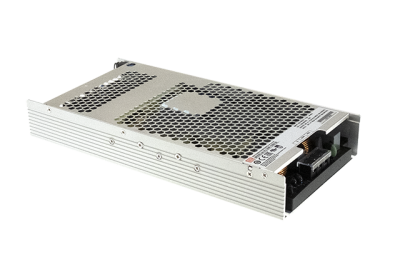

The MEAN WELL UHP-1500-380 is a industrial, single output, AC-DC power supply. The nominal output is 380 volts DC at 3.95 amps, with a maximum power output of 1501 watts. It accepts an AC input voltage of 90~264 and has an efficiency rating of 96%. The UHP-1500-380 has an Enclosed package type with an operating temperature range of -30C to +70C. It includes a built-in fan for active cooling and its dimensions are 11.42 (L) x 5.51 (W) x 1.61 (H) inches. If you have questions about this MEAN WELL AC-DC power supply please contact us through our web chat or call us (408-733-9090).
MEAN WELL UHP-1500-380 Features
View More
For specific information on the MEAN WELL UHP-1500-380 please view the datasheet
Other models in the UHP-1500-HV series: 380 volt-UHP-1500-380E; 115 volt-UHP-1500-115; 230 volt-UHP-1500-230
| Price | $410.40 |
|---|---|
| Manufacturer | Mean Well |
| Application | Industrial (ITE) |
| Package Type | Enclosed |
| AC Input (VAC) | 90~264 |
| Number Outputs | 1 |
| Voltage - Output 1 (VDC) | 380 |
| Output Current 1 | 3.95A |
| Power Output (W) | 1501 |
| Length | 11.42in (290.00mm) |
| Width | 5.51in (140.00mm) |
| Height | 1.61in (41.00mm) |
| Cooling | Fan Cooled |
| Operating Temperature | -30C ~ 70C (with derating) |
| Efficiency | 96% |
| Weight (lbs) | 5.534550 |
| Country of Origin | China |
| Product Series | UHP-1500-HV |
