Mean Well UHP-1500-230

SKU
UHP-1500-230
Image at top has 5 yellow stars, below it is the red Mean Well logo.Image at top has 5 yellow stars, below it is the red Mean Well logo.

  Authorized MEAN WELL

  Stocking Distributor

$399.00
  • Buy 5 for $380.10 each and save 5%
  • Buy 20 for $352.80 each and save 12%

Product images shown are for illustration purposes only and may not be an exact representation of the product.

Add to Wish List Add to Compare
Image emphasizing payment and purchase on this website is secure. Image shows a green shield with a lock, with words saying 100% SecureImage emphasizing payment and purchase on this website is secure. Image shows a green shield with a lock, with words saying 100% Secure

pdf download  UHP-1500-HV Datasheet

MEAN WELL AC-DC Industrial Enclosed 1500 Watts 230VDC out

More Details
The MEAN WELL UHP-1500-230 is a industrial, single output, AC-DC power supply. The nominal output is rated for 230 volts DC at 6.52 amps (1500 watts). This power converter accepts an AC input range of 90~264 and has an efficiency rating of 95%. The UHP-1500-230 is an Enclosed package type with an operating temperature range of -30C to +70C. This AC-DC converter has on board fan and its dimensions are 290 (L) x 140 (W) x 41 (H) mm. If you have questions about this MEAN WELL AC-DC power supply please contact us through our web chat or call us (408-733-9090).
Loading...

MEAN WELL UHP-1500-230 Features

AC-DC Industrial Enclosed Single output power supplyOutput: 230 volts, 6.52 amps, 1500 wattsHigh voltage output (115/230/380V)Fanless and conduction-cooled design

View MoreSlim and 1U Low profile (41mm)Built-in active PFC functionDC 12V/0.4A auxiliary availableOutput voltage and constant current level programmable (PV/PC)Protections: Short circuit / Over load / Over voltage / Over temperatureBuilt-in remote ON-OFF control and DC OK signalOperating altitude up to 2000 meter LED indicator for power onOptional PMBus or CANBus protocol5 year warranty

For specific information on the MEAN WELL UHP-1500-230 please view the datasheet

Other models in the UHP-1500-HV series: 380 volt-UHP-1500-380E; 115 volt-UHP-1500-115; 380 volt-UHP-1500-380

More Information
Price$399.00
ManufacturerMean Well
Package TypeEnclosed
IndustryIndustrial
AC InputUniversal Input - Full Range, 90~264
Voltage Output230.0
Power Output (W)1500
CoolingOn Board Fan
Related Posts
  1. The Different Types of High Voltage Power Supplies Available at Bravo Electro

Related Posts

  1. The Different Types of High Voltage Power Supplies Available at Bravo Electro

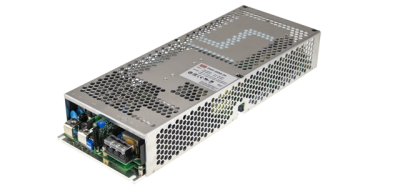

MEAN WELL AC-DC power supply PHP-3500-230
