Mean Well NPB-240-12XLR (205W 14.4V)
SKU
NPB-240-12XLR
Authorized MEAN WELL
Stocking Distributor
$69.90
- Buy 5 for $66.60 each and save 5%
- Buy 10 for $63.70 each and save 9%
- Buy 20 for $61.80 each and save 12%
MEAN WELL Single Output, Battery Charger AC-DC Converter, External-Desktop Package, 205 Watts, Input Voltage Range: 90~264VAC, Output Voltage: 14.4VDC, Output Current: 14A, Connection: 4-pin Power Din
More Details
The MEAN WELL NPB-240-12XLR is a battery charger, single output, AC-DC power supply. The nominal output is 14.4 volts DC at 13.5 amps, with a maximum power output of 205 watts. It accepts an AC input voltage of 90~264 and has an efficiency rating of 89%. The NPB-240-12XLR has an External or Adapter package type with an operating temperature range of -30C to +70C. It has a fanless design for silent operation and its dimensions are 7.19 (L) x 3.78 (W) x 1.93 (H) inches. If you have questions about this MEAN WELL AC-DC power supply please contact us through our web chat or call us (408-733-9090).
MEAN WELL NPB-240-12XLR Features
View More
For specific information on the MEAN WELL NPB-240-12XLR please view the datasheet

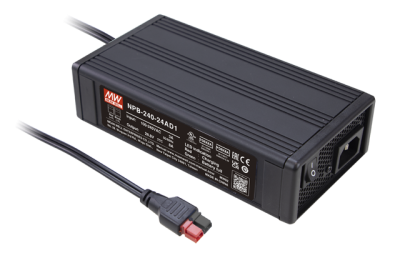

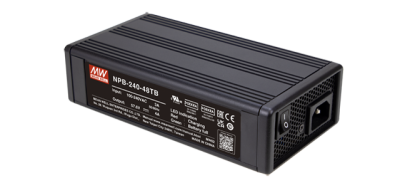

Other models in the NPB-240 series: 14.4 volt-NPB-240-12AD1; 14.4 volt-NPB-240-12TB; 28.8 volt-NPB-240-24AD1; 28.8 volt-NPB-240-24TB; 28.8 volt-NPB-240-24XLR; 57.6 volt-NPB-240-48AD1; 57.6 volt-NPB-240-48TB; 57.6 volt-NPB-240-48XLR
| Price | $69.90 |
|---|---|
| Manufacturer | Mean Well |
| Application | Battery Charger |
| Package Type | External-Desktop |
| AC Input (VAC) | 90~264 |
| Number Outputs | 1 |
| Voltage - Output 1 (VDC) | 14.4 |
| Output Current 1 | 13.5A |
| Power Output (W) | 205 |
| Length | 7.19in (182.70mm) |
| Width | 3.78in (96.00mm) |
| Height | 1.93in (49.00mm) |
| Cooling | Fanless |
| Operating Temperature | -30C ~ 70C (with derating) |
| Efficiency | 89% |
| Weight (lbs) | 2.866500 |
| Country of Origin | China |
| Product Series | NPB-240 |
