Mean Well NPB-360-12AD1 (304W 14.4V)

SKU
NPB-360-12AD1
Image at top has 5 yellow stars, below it is the red Mean Well logo. Image at top has 5 yellow stars, below it is the red Mean Well logo.

  Authorized MEAN WELL

  Stocking Distributor

$87.80
  • Buy 5 for $83.60 each and save 5%
  • Buy 10 for $79.90 each and save 9%
  • Buy 20 for $77.60 each and save 12%

Tariff Status: Import tariffs may apply to U.S. shipments. Applicable tariff charges, if any, will be confirmed after order acknowledgment and prior to fulfillment, so there are no surprises.

Add to Wish List Add to Compare
Image emphasizing payment and purchase on this website is secure. Image shows a green shield with a lock, with words saying 100% Secure Image emphasizing payment and purchase on this website is secure. Image shows a green shield with a lock, with words saying 100% Secure

pdf download  NPB-360 Datasheet

MEAN WELL Single Output, Battery Charger AC-DC Converter, External-Desktop Package, 304 Watts, Input Voltage Range: 90~264VAC, Output Voltage: 14.4VDC, Output Current: 20A, Connection: 2-pin Anderson equivalent connector

More Details
The MEAN WELL NPB-360-12AD1 is a battery charger, single output, AC-DC power supply. The nominal output is 14.4 volts DC at 20 amps, with a maximum power output of 304 watts. It accepts an AC input voltage of 90~264 and has an efficiency rating of 87%. The NPB-360-12AD1 has an External or Adapter package type with an operating temperature range of -30C to +70C. It includes a built-in fan for active cooling and its dimensions are 7.19 (L) x 3.78 (W) x 1.93 (H) inches. If you have questions about this MEAN WELL AC-DC power supply please contact us through our web chat or call us (408-733-9090).

MEAN WELL NPB-360-12AD1 Features

AC-DC Charger External-Desktop Single output power supplyOutput: 14.4 volts, 20 amps, 304 wattsConnection Type: 2-pin Anderson equivalent connectorOutput Connector: 2-pin Anderson equivalent connector (details in datasheet)90~264 Vac universal AC input, built-in PFCCharger for compatible with lead-acid and li-ion batteries
View MoreFan ON-OFF control (depends on internal temperature)Wide adjustable output range by VR:2 or 3 stage selectable by DIP S.WNo load power consumption-30°C~+70°C wide operating temperatureProtections: Short circuit / Over voltage / Over temperature / Battery reverse polarity protectionComply with UL/EN62368-1 and EN60335-1/2-29 dual certificationFront panel LED indicator for charging status3 year warranty

For specific information on the MEAN WELL NPB-360-12AD1 please view the datasheet

Other models in the NPB-360 series: 14.4 volt-NPB-360-12TB; 14.4 volt-NPB-360-12XLR; 28.8 volt-NPB-360-24AD1; 28.8 volt-NPB-360-24TB; 28.8 volt-NPB-360-24XLR; 57.6 volt-NPB-360-48AD1; 57.6 volt-NPB-360-48TB; 57.6 volt-NPB-360-48XLR

Frequently Bought Together

picture showing a three prong 5-15P Nema plug and a C13 connector picture showing a three prong 5-15P Nema plug and a C13 connector

Power Cord (IEC320-C14)

Specifications
Price$87.80
ManufacturerMean Well
ApplicationBattery Charger
Package TypeExternal-Desktop
AC Input (VAC)90~264
Number Outputs1
Voltage - Output 1 (VDC)14.4
Output Current 120A
Power Output (W)304
Length7.19in (182.70mm)
Width3.78in (96.00mm)
Height1.93in (49.00mm)
CoolingFan Cooled
Operating Temperature-30C ~ 70C (with derating)
Efficiency87%
Weight (lbs)2.866500
Country of OriginChina
Product SeriesNPB-360

Product images shown are for illustration purposes only and may not be an exact representation of the product.

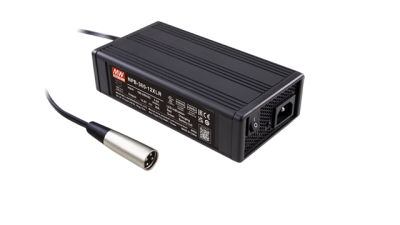

MEAN WELL AC-DC power supply NPB-360-12XLR
