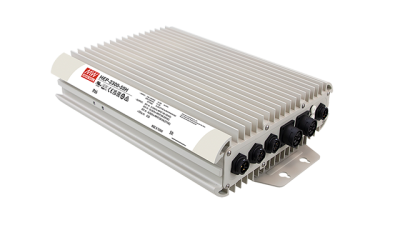

Mean Well HEP-2300-55W (2300W 55V)
SKU
HEP-2300-55W
Authorized MEAN WELL
Stocking Distributor
$874.00
- Buy 5 for $832.60 each and save 5%
- Buy 10 for $795.80 each and save 9%
- Buy 20 for $772.80 each and save 12%
MEAN WELL Single Output, Industrial AC-DC Converter, Harsh Environment Package, 2300 Watts, Input Voltage Range: 90~305VAC, Output Voltage: 55VDC, Output Current: 42A, Connection: Wire Leads
More Details
The MEAN WELL HEP-2300-55W is a industrial, single output, AC-DC power supply. The nominal output is 55 volts DC at 41.8 amps, with a maximum power output of 2300 watts. It accepts an AC input voltage of 90~305 and has an efficiency rating of 96%. The HEP-2300-55W has a Harsh Environment package type with an operating temperature range of -40C to +70C. It has a fanless design for silent operation and its dimensions are 14.76 (L) x 11.02 (W) x 3.46 (H) inches. If you have questions about this MEAN WELL AC-DC power supply please contact us through our web chat or call us (408-733-9090).
MEAN WELL HEP-2300-55W Features
View More
For specific information on the MEAN WELL HEP-2300-55W please view the datasheet
Other models in the HEP-2300 series: 55 volt-HEP-2300-55; 55 volt-HEP-2300-55H
| Price | $874.00 |
|---|---|
| Manufacturer | Mean Well |
| Application | Industrial (ITE) |
| Package Type | Harsh Environment |
| AC Input (VAC) | 90~305 |
| Number Outputs | 1 |
| Voltage - Output 1 (VDC) | 55 |
| Output Current 1 | 41.8A |
| Power Output (W) | 2300 |
| Length | 14.76in (375.00mm) |
| Width | 11.02in (280.00mm) |
| Height | 3.46in (88.00mm) |
| Cooling | Fanless |
| Operating Temperature | -40C ~ 70C (with derating) |
| Efficiency | 96% |
| Weight (lbs) | 27.562500 |
| Country of Origin | Taiwan, China |
| Product Series | HEP-2300 |
