Mean Well HEP-2300-55H

SKU
HEP-2300-55H
Image at top has 5 yellow stars, below it is the red Mean Well logo.Image at top has 5 yellow stars, below it is the red Mean Well logo.

  Authorized MEAN WELL

  Stocking Distributor

$912.00
  • Buy 5 for $868.80 each and save 5%
  • Buy 20 for $806.40 each and save 12%

Product images shown are for illustration purposes only and may not be an exact representation of the product.

Add to Wish List Add to Compare
Image emphasizing payment and purchase on this website is secure. Image shows a green shield with a lock, with words saying 100% SecureImage emphasizing payment and purchase on this website is secure. Image shows a green shield with a lock, with words saying 100% Secure

pdf download  HEP-2300 Datasheet

MEAN WELL AC-DC Industrial, Charger Harsh Environment 2300 Watts 55VDC out

More Details

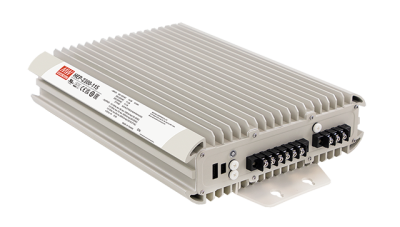

The MEAN WELL HEP-2300-55H is a industrial, charger, single output, AC-DC power supply. The nominal output is rated for 55 volts DC at 41.8 amps (2300 watts). This power converter accepts an AC input range of 90~305 and has an efficiency rating of 96%. The HEP-2300-55H is an package type with an operating temperature range of -40C to +70C. This AC-DC converter has no on board fan and its dimensions are 375 (L) x 280 (W) x 88 (H) mm. If you have questions about this MEAN WELL AC-DC power supply please contact us through our web chat or call us (408-733-9090).
Loading...

MEAN WELL HEP-2300-55H Features

AC-DC Industrial, Charger Harsh Environment Single output power supplyOutput: 55 volts, 41.8 amps, 2300 wattsHigh efficiency up to 95.5% and active PFC functionFanless design, cooling by free air convection

View MoreAluminum case and filling with heat-conducted glueWithstand 10G vibration testWide operating temperature range -40 ~ +70°CCharger function for lead-acid batteries and Li-ion batteriesBuilt-in default 2/3 stage charging curves and programmable curveBuilt-in CANBus and PMBus / MODBus optionalOutput voltage and constant current level programmableProtections: Short circuit / Overload / Over voltage / Over temperatureBuilt-in remote ON-OFF control and DC OK active signalHarness connector type with AC fail and T-Alarm signalLED indicator for power on and 12V auxiliary power availableDiverse installation scenarios-Mounting methods4G and 5G telecom active antenna systems (RRU, AAU)6 year warranty

For specific information on the MEAN WELL HEP-2300-55H please view the datasheet

Other models in the HEP-2300 series: 55 volt-HEP-2300-55; 55 volt-HEP-2300-55W

More Information
Price$912.00
ManufacturerMean Well
Package TypeHarsh Environment
IndustryIndustrial
AC InputUniversal Input - Full Range, Up to 305, 90~305
Voltage Output55.0
Power Output (W)2300
CoolingNo On Board Fan
