IPD GRN-360-1001-CHCO (360W 12V)

SKU
GRN-360-1001-CHCO
$158.52
  • Buy 5 for $155.33 each and save 2%
  • Buy 10 for $151.27 each and save 5%
  • Buy 20 for $148.36 each and save 6%

Tariff Status: Import tariffs may apply to U.S. shipments. Applicable tariff charges, if any, will be confirmed after order acknowledgment and prior to fulfillment, so there are no surprises.

Add to Wish List Add to Compare
Image emphasizing payment and purchase on this website is secure. Image shows a green shield with a lock, with words saying 100% Secure Image emphasizing payment and purchase on this website is secure. Image shows a green shield with a lock, with words saying 100% Secure

IPD Single Output AC-DC Converter, Enclosed Package, 360 Watts, Input Voltage Range: 85~264 VAC, Output Voltage: 12VDC, Output Current: 30A

More Details
The Integrated Power Designs GRN-360-1001-CHCO is a single output, AC-DC power supply. The nominal output is rated for 12 volts DC at 30 amps (360 watts). It accepts an AC input range of 85~264 and has an efficiency rating of 93%. The GRN-360-1001-CHCO is an Enclosed package type with an operating temperature range of -20C to +70C. This AC-DC converter has Medical and Industrial (ITE) safety certifications, features fanless design for quiet operation and its dimensions are 5.1 (L) x 3.16 (W) x 1.8 (H) inches. If you have questions about this IPD power supply please contact us through our web chat (lower right hand corner) or call us (408-733-9090).

Integrated Power Designs GRN-360-1001-CHCO Features

TARIFF FREE- IPD power supplies are proudly Made in the U.S.A.Includes a chassis and cover as called out by the -CHCO suffix in the part numberAC-DC, Medical and Industrial (ITE) safeties, enclosed type power supplySingle Output: 12 volts, 30 amps, 360 wattsFor full power (360W), 300LFM forced air is required (see datasheet)Compact 3.16" x 5.1" x 1.80" size

View More3 Year WarrantyUniversal 85-264Vac InputSingle Output94% Peak / 93% Average Efficiency< 500mW Standby Input Power-20 to +70°C Operating TemperatureIEC 60601-1 3rd ed. Medical Cert.IEC 62368-1 2nd ed. CertificationIEC 60601-1-2 4th ed. EMCClass B Emissions per EN55011/32Optional Chassis/Cover (search same part number with added suffix "-CH" for chassis and "-CHCO" for chassis/ cover)Optional Fan supply 12V / 0.6ARoHS Compliant

For specific information on the IPD GRN-360-1001-CHCO please view the datasheet

Other single output models in the GRN-360 series: 15 volt-GRN-360-1002-CHCO; 18 volt-GRN-360-1003-CHCO; 24 volt-GRN-360-1004-CHCO; 36 volt-GRN-360-1005-CHCO; 48 volt-GRN-360-1006-CHCO; 54 volt-GRN-360-1007-CHCO

Specifications
Price$158.52
ManufacturerIPD
ApplicationIndustrial (ITE), Medical
Package TypeEnclosed
AC Input (VAC)85~264
Number Outputs1
Voltage - Output 1 (VDC)12
Output Current 130A
Power Output (W)360
Length5.10in (129.03mm)
Width3.16in (79.95mm)
Height1.80in (45.54mm)
CoolingFanless
Operating Temperature-20C ~ 70C (with derating)
Efficiency93%
Weight (lbs)1.250000
Country of OriginU.S.A.
Product SeriesGRN-360

Product images shown are for illustration purposes only and may not be an exact representation of the product.

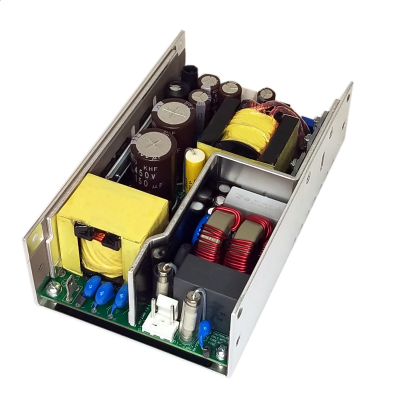

GRN-360-1001-CH IPD AC/DC Power Supply
