IPD GRN-360-1001-CH (360W 12V)
SKU
GRN-360-1001-CH
$151.67
- Buy 5 for $148.62 each and save 2%
- Buy 10 for $144.73 each and save 5%
- Buy 20 for $141.95 each and save 6%
IPD Single Output AC-DC Converter, Enclosed Package, 360 Watts, Input Voltage Range: 85~264 VAC, Output Voltage: 12VDC, Output Current: 30A
More Details

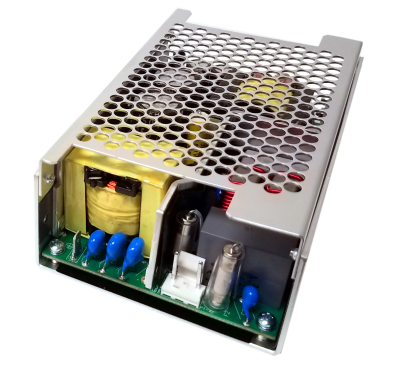

The Integrated Power Designs GRN-360-1001-CH is a single output, AC-DC power supply. The nominal output is rated for 12 volts DC at 30 amps (360 watts). It accepts an AC input range of 85~264 and has an efficiency rating of 93%. The GRN-360-1001-CH is an Enclosed package type with an operating temperature range of -20C to +70C. This AC-DC converter has Medical and Industrial (ITE) safety certifications, features fanless design for quiet operation and its dimensions are 5.1 (L) x 3.16 (W) x 1.8 (H) inches. If you have questions about this IPD power supply please contact us through our web chat (lower right hand corner) or call us (408-733-9090).
Integrated Power Designs GRN-360-1001-CH Features
View More
For specific information on the IPD GRN-360-1001-CH please view the datasheet
Other single output models in the GRN-360 series: 15 volt-GRN-360-1002-CH; 18 volt-GRN-360-1003-CH; 24 volt-GRN-360-1004-CH; 36 volt-GRN-360-1005-CH; 48 volt-GRN-360-1006-CH; 54 volt-GRN-360-1007-CH
| Price | $151.67 |
|---|---|
| Manufacturer | IPD |
| Application | Industrial (ITE), Medical |
| Package Type | Enclosed |
| AC Input (VAC) | 85~264 |
| Number Outputs | 1 |
| Voltage - Output 1 (VDC) | 12 |
| Output Current 1 | 30A |
| Power Output (W) | 360 |
| Length | 5.10in (129.03mm) |
| Width | 3.16in (79.95mm) |
| Height | 1.80in (45.54mm) |
| Cooling | Fanless |
| Operating Temperature | -20C ~ 70C (with derating) |
| Efficiency | 93% |
| Weight (lbs) | 1.250000 |
| Country of Origin | U.S.A. |
| Product Series | GRN-360 |
Get Help Finding the Right Power Supply: Power Requirement Form
