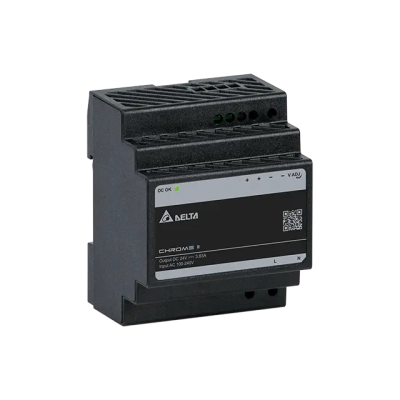

Delta DRC-12V060W1RZ (54W 12V)
- Buy 20 for $23.31 each and save 3%
- Buy 50 for $22.91 each and save 4%
- Buy 100 for $22.55 each and save 6%
Delta Single Output, Class II, NEC Class 2, LPS, OVC III, Industrial AC-DC Converter, DIN Rail Package, 54 Watts, Input Voltage Range: 85~264VAC, Output Voltage: 12VDC, Output Current: 5A, Connection: Screw Terminal
More Details
The Delta DRC-12V060W1RZ is a industrial, 1 output, AC-DC power supply. The nominal output is 12 Volts DC at 4.5 amps, with a maximum power output of 54 watts. It accepts an AC input voltage of 85~264 and has an efficiency rating of 88%. The DRC-12V060W1RZ has a DIN Rail mount package type with an operating temperature range of -30C to +70C. It features a fanless design for silent operation and its dimensions are 3.44 (L) x 2.07 (W) x 2.17 (H) inches. If you have questions about this Delta AC-DC power supply please contact us through our web chat or call us (408-733-9090).
Delta DRC-12V060W1RZ Features
View More
DRC-60W Series Description: The Delta DRC-60W Series AC-DC DIN rail power supply, a versatile model in the Chrome II family, delivers a robust 60-watt output with voltage options of 12V, 24V, and 48V featuring screw terminal connections for secure and reliable installation. Designed for universal AC input (85-264Vac), this unit excels in demanding applications such as advanced building automation, smart home ecosystems, and industrial control panels. Its compact design adheres to DIN 43880 standards for distribution boards, making it an ideal fit for space-constrained setups like intelligent lighting systems, access control devices, and HVAC controllers. Operating reliably from -30°C to +70°C (see datasheet for derating) with startup capability at -40°C, the DRC-60W ensures consistent performance in extreme conditions. Certified to IEC/EN 60335-1, IEC 61558-1, and IEC 61558-2-16, it guarantees electrical safety for household and building applications. With double-isolated input for low leakage current and compliance with DOE VI energy efficiency standards, it reduces no-load power consumption, enhancing sustainability. Meeting EN 61000-6-4 Class B emission and EN 61000-6-2 immunity standards, it minimizes electromagnetic interference. RoHS-compliant and engineered for durability, the DRC-60W Series is a top choice for engineers seeking a powerful, safe, and compact power solution for modern automation and smart home applications.
For specific information on the Delta DRC-12V060W1RZ please view the datasheet
Other models in the DRC-60W series: 24 volt-DRC-24V060W1RZ; 48 volt-DRC-48V060W1RZ
| Price | $23.96 |
|---|---|
| Manufacturer | Delta |
| Application | Industrial (ITE) |
| Package Type | DIN Rail |
| AC Input (VAC) | 85~264 |
| Number Outputs | 1 |
| Voltage - Output 1 (VDC) | 12 |
| Output Current 1 | 4.5A |
| Power Output (W) | 54 |
| Length | 3.44in (87.38mm) |
| Width | 2.07in (52.58mm) |
| Height | 2.17in (55.12mm) |
| Cooling | Fanless |
| Operating Temperature | -30C ~ 70C (with derating) |
| Efficiency | 88% |
| Weight (lbs) | 0.370000 |
| Country of Origin | India |
| Product Series | DRC-60W |
Get Help Finding the Right Power Supply: Power Requirement Form
