Mean Well RST-7K5-230

Image at top has 5 yellow stars, below it is the red Mean Well logo.Image at top has 5 yellow stars, below it is the red Mean Well logo.

  Authorized MEAN WELL

  Stocking Distributor

Special Price $1,760.00 Regular Price $1,900.00
  • Buy 10 for $1,710.00 each and save 3%
  • Buy 20 for $1,680.00 each and save 5%

Product images shown are for illustration purposes only and may not be an exact representation of the product.

MEAN WELL AC-DC Industrial Enclosed 7452 Watts 230VDC out

More Details
The MEAN WELL RST-7K5-230 is a industrial, single output, AC-DC power supply. The nominal output is rated for 230 volts DC at 34.5 amps (7452 watts). This power converter accepts an AC input range of Delta 196~305 or 4-wire Y340~530 and has an efficiency rating of 95%. The RST-7K5-230 is an Enclosed package type with an operating temperature range of -30C to +70C. This AC-DC converter has on board fan and its dimensions are 460 (L) x 211 (W) x 83.5 (H) mm. If you have questions about this MEAN WELL AC-DC power supply please contact us through our web chat or call us (408-733-9090).

MEAN WELL RST-7K5-230 Features

AC-DC Industrial Enclosed Single output power supplyOutput: 230 volts, 34.5 amps, 7452 watts3-wire / Delta 196~305VAC or 3 / 4-wire Y 340~530VACHigh efficiency up to 95%

View MoreWater / forced air cooling selectableOutput voltage and constant current level programmableWide voltage adjustment range 1~120%Active current sharing up to 4 units (28.5KW)Built-in remote ON-OFF control / Alarm signalProtections: Short circuit / Overload / Over voltage /Over temperature / Fan fail5 years warranty

For specific information on the MEAN WELL RST-7K5-230 please view the datasheet

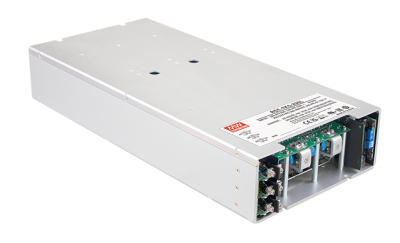

Other models in the RST-7K5 series: 115 volt-RST-7K5-115; 380 volt-RST-7K5-380; 115 volt-RST-7K5-115L; 230 volt-RST-7K5-230L; 380 volt-RST-7K5-380L

More Information
ManufacturerMean Well
Package TypeEnclosed
AC InputThree Phase, Delta 196~305 or 4-wire Y340~530
Voltage Output230.0
Power Output (W)7452
CoolingOn Board Fan
