IPD REL-150-4003 (4 Output, 150W)

SKU
REL-150-4003
$172.45
  • Buy 5 for $168.98 each and save 2%
  • Buy 10 for $164.56 each and save 5%
  • Buy 20 for $161.40 each and save 6%

Tariff Status: Import tariffs may apply to U.S. shipments. Applicable tariff charges, if any, will be confirmed after order acknowledgment and prior to fulfillment, so there are no surprises.

Add to Wish List Add to Compare
Image emphasizing payment and purchase on this website is secure. Image shows a green shield with a lock, with words saying 100% Secure Image emphasizing payment and purchase on this website is secure. Image shows a green shield with a lock, with words saying 100% Secure

pdf download  REL-150 Datasheet

IPD Quad Output AC-DC Converter, Open Frame Package, 150 Watts, Input Voltage Range: 85~264 VAC, Output Voltage: 5/ 3.3/ 15/ -15VDC, Output Current: 15/ 8/ 2/ 2A

More Details
The Integrated Power Designs REL-150-4003 is a quad output, AC-DC power supply. The four outputs are 5V / 15A, 3.3V / 8A, 15V / 2A, -15V / 2A for a total power output of 150 watts. It accepts an AC input range of 85~264 and has an efficiency rating of 87%. The REL-150-4003 is an Open Frame package type with an operating temperature range of 0C to +70C. This AC-DC converter has Medical and Industrial (ITE) safety certifications, features fanless design for quiet operation and its dimensions are 6 (L) x 3.83 (W) x 1.32 (H) inches. If you have questions about this IPD power supply please contact us through our web chat (lower right hand corner) or call us (408-733-9090).

Integrated Power Designs REL-150-4003 Features

TARIFF FREE- IPD power supplies are proudly Made in the U.S.A.AC-DC, Medical and Industrial (ITE) safeties, open frame type power supplyQuad Output: 5 volts / 15 amps, 3.3 volts / 8 amps, 15 volts / 2 amps, -15 volts / 2 amps, 150 total wattsCompact 3.8” x 6.0” x 1.3” Size2 Year Warranty

View MoreUniversal 85-264V InputHigh Efficiency0-70°C Operating TemperatureIEC 60601-1 3rd ed. Medical Cert.IEC 62368-1 2nd ed. CertificationIEC 60601-1-2 4th ed. EMCClass B Emissions per EN55011/32RoHS CompliantOptional Remote Inhibit/Enable (ask a Bravo Power Expert)Optional Chassis/Cover (search same part number with added suffix "-CH" for chassis and "-CHCO" for chassis/ cover)

For specific information on the IPD REL-150-4003 please view the datasheet

Other quad output models in the REL-150 series: 3.3V/5V/12V/-12V-REL-150-4001; 5V/3.3V/12V/-12V-REL-150-4002; 5V/-5V/12V/-12V-REL-150-4004; 5V/-5V/15V/-15V-REL-150-4005; 5V/24V/12V/-12V-REL-150-4006; 5V/24V/15V/-15V-REL-150-4007; 24V/10V/6V/-6V-REL-150-4009; 5V/12V/24V/24V-REL-150-4010; 3.5V/5.2V/12.5V/13.3V-REL-150-4011; 3.3V/5V/14V/-14V-REL-150-4012; 7.3V/30V/24V/-24V-REL-150-4013

Specifications
Price$172.45
ManufacturerIPD
ApplicationIndustrial (ITE), Medical
Package TypeOpen Frame
Number Outputs4
Power Output (W)150
Voltage - Output 1 (VDC)5
Output Current 115A
Voltage - Output 2 (VDC)3.3
Output Current 28A
Voltage - Output 3 (VDC)15
Output Current 32A
Voltage - Output 4 (VDC)-15
Output Current 42A
Length6.00in (151.80mm)
Width3.83in (96.90mm)
Height1.32in (33.40mm)
Operating Temperature0C ~ 70C (with derating)
CoolingFanless
Efficiency87%
Weight (lbs)1.150000
Country of OriginU.S.A.
Product SeriesREL-150

Product images shown are for illustration purposes only and may not be an exact representation of the product.

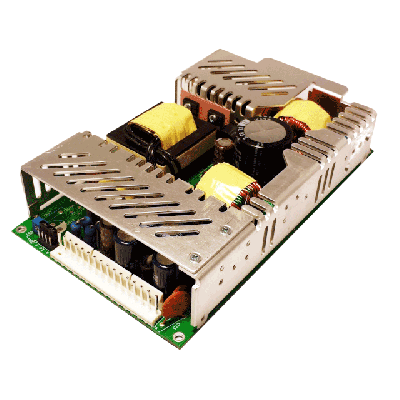

REL-185-4003 IPD AC/DC Power Supply
