IPD NXT-400M-2003-02-CH (2 Output, 400W)

SKU
NXT-400M-2003-02-CH
$313.48
  • Buy 5 for $307.17 each and save 2%
  • Buy 10 for $299.14 each and save 5%
  • Buy 20 for $293.38 each and save 6%

Tariff Status: Import tariffs may apply to U.S. shipments. Applicable tariff charges, if any, will be confirmed after order acknowledgment and prior to fulfillment, so there are no surprises.

Add to Wish List Add to Compare
Image emphasizing payment and purchase on this website is secure. Image shows a green shield with a lock, with words saying 100% Secure Image emphasizing payment and purchase on this website is secure. Image shows a green shield with a lock, with words saying 100% Secure

pdf download  NXT-400M Datasheet

IPD Dual Output AC-DC Converter, Enclosed Package, 400 Watts, Input Voltage Range: 85~264 VAC, Output Voltage: 12/ -15VDC, Output Current: 25/ 10A

More Details
The Integrated Power Designs NXT-400M-2003-02-CH is a dual output, AC-DC power supply. The two outputs are 12V / 25A, -15V / 10A for a total power output of 400 watts. It accepts an AC input range of 85~264 and has an efficiency rating of 87%. The NXT-400M-2003-02-CH is an Enclosed package type with an operating temperature range of -20C to +70C. This AC-DC converter has Medical and Industrial (ITE) safety certifications, features fanless design for quiet operation and its dimensions are 7.1 (L) x 4.15 (W) x 1.8 (H) inches. If you have questions about this IPD power supply please contact us through our web chat (lower right hand corner) or call us (408-733-9090).

Integrated Power Designs NXT-400M-2003-02-CH Features

TARIFF FREE- IPD power supplies are proudly Made in the U.S.A.Includes a chassis as called out by the -CH suffix in the part numberAC-DC, Medical and Industrial (ITE) safeties, enclosed type power supplyDual Output: 12 volts / 25 amps, -15 volts / 10 amps, 400 total wattsCompact Size3 Year Warranty

View MoreUniversal 85-264V Input2 Regulated & Adjustable Outputs90% Peak/87% Average Efficiency<300mW No Load Input Power-20 to +70°C Operating TemperatureRoHS CompliantIEC 60601-1 3rd ed. Medical Cert.IEC 60950-1 2nd ed. ITE CertificationIEC 62368-1 2nd ed. CertificationIEC 60601-1-2 4th ed. EMCClass B Emissions per EN55011/32Optional 5V/2A Standby Output (ask a Bravo Power Expert)Optional Remote Inhibit/Enable (ask a Bravo Power Expert)Optional Cover (search same part number with suffix "-CHCO")

For specific information on the IPD NXT-400M-2003-02-CH please view the datasheet

Other dual output models in the NXT-400M series: 5V / 24V-NXT-400M-2001-01-CH; 5V / 28V-NXT-400M-2001-02-CH; 5V / 12V-NXT-400M-2002-01-CH; 5V / 15V-NXT-400M-2002-02-CH; 12V / -12V-NXT-400M-2003-01-CH; 15V / -12V-NXT-400M-2004-01-CH; 15V / -15V-NXT-400M-2004-02-CH

Specifications
Price$313.48
ManufacturerIPD
ApplicationIndustrial (ITE), Medical
Package TypeEnclosed
Number Outputs2
Power Output (W)400
Voltage - Output 1 (VDC)12
Output Current 125A
Voltage - Output 2 (VDC)-15
Output Current 210A
Length7.10in (179.63mm)
Width4.15in (105.00mm)
Height1.80in (45.54mm)
Operating Temperature-20C ~ 70C (with derating)
CoolingFanless
Efficiency87%
Weight (lbs)2.200000
Country of OriginU.S.A.
Product SeriesNXT-400M

Product images shown are for illustration purposes only and may not be an exact representation of the product.

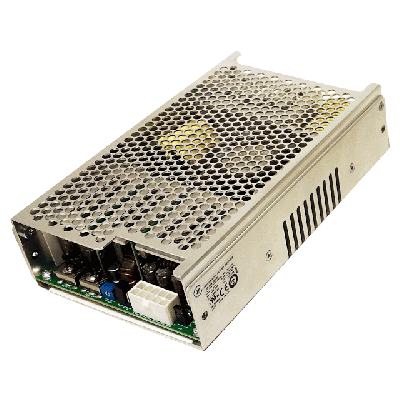

NXT-400M-2003-02-CHCO IPD AC/DC Power Supply
