IPD NXT-1000-1006 (1000W 48V)
SKU
NXT-1000-1006
$410.19
- Buy 5 for $401.93 each and save 2%
- Buy 10 for $391.42 each and save 5%
- Buy 20 for $383.90 each and save 6%
IPD Single Output AC-DC Converter, Enclosed Package, 1000 Watts, Input Voltage Range: 85~264 VAC, Output Voltage: 48VDC, Output Current: 20.8A
More Details

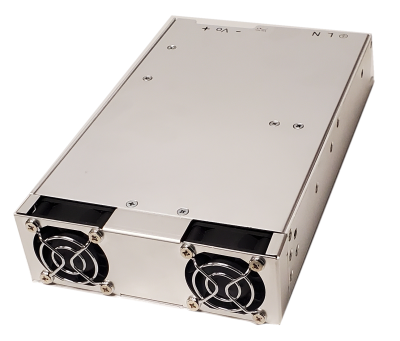

The Integrated Power Designs NXT-1000-1006 is a single output, AC-DC power supply. The nominal output is rated for 48 volts DC at 20.8 amps (1000 watts). It accepts an AC input range of 85~264 and has an efficiency rating of 90%. The NXT-1000-1006 is an Enclosed package type with an operating temperature range of -20C to +70C. This AC-DC converter has Medical and Industrial (ITE) safety certifications, features fanless design for quiet operation and its dimensions are 8 (L) x 5 (W) x 1.61 (H) inches. If you have questions about this IPD power supply please contact us through our web chat (lower right hand corner) or call us (408-733-9090).
Integrated Power Designs NXT-1000-1006 Features
View More
For specific information on the IPD NXT-1000-1006 please view the datasheet
Other single output models in the NXT-1000 series: 12 volt-NXT-1000-1001; 15 volt-NXT-1000-1002; 24 volt-NXT-1000-1003; 28 volt-NXT-1000-1004; 36 volt-NXT-1000-1005; 56 volt-NXT-1000-1007
| Price | $410.19 |
|---|---|
| Manufacturer | IPD |
| Application | Industrial (ITE), Medical |
| Package Type | Enclosed |
| AC Input (VAC) | 85~264 |
| Number Outputs | 1 |
| Voltage - Output 1 (VDC) | 48 |
| Output Current 1 | 20.8A |
| Power Output (W) | 1000 |
| Length | 8.00in (202.40mm) |
| Width | 5.00in (126.50mm) |
| Height | 1.61in (40.73mm) |
| Cooling | Fanless |
| Operating Temperature | -20C ~ 70C (with derating) |
| Efficiency | 90% |
| Weight (lbs) | 2.450000 |
| Country of Origin | U.S.A. |
| Product Series | NXT-1000 |
Get Help Finding the Right Power Supply: Power Requirement Form
