IPD NXT-100-1002-CHCO (66W 3.3V)
SKU
NXT-100-1002-CHCO
$123.00
- Buy 5 for $120.52 each and save 2%
- Buy 10 for $117.37 each and save 5%
- Buy 20 for $115.12 each and save 6%
IPD Single Output AC-DC Converter, Enclosed Package, 66 Watts, Input Voltage Range: 85~264 VAC, Output Voltage: 3.3VDC, Output Current: 20A
More Details

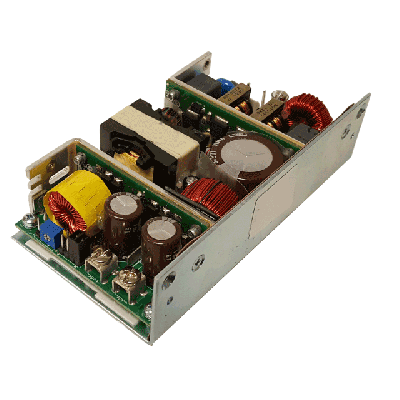

The Integrated Power Designs NXT-100-1002-CHCO is a single output, AC-DC power supply. The nominal output is rated for 3.3 volts DC at 20 amps (66 watts). It accepts an AC input range of 85~264 and has an efficiency rating of 87%. The NXT-100-1002-CHCO is an Enclosed package type with an operating temperature range of 0C to +70C. This AC-DC converter has Medical and Industrial (ITE) safety certifications, features fanless design for quiet operation and its dimensions are 4.81 (L) x 2.59 (W) x 1.3 (H) inches. If you have questions about this IPD power supply please contact us through our web chat (lower right hand corner) or call us (408-733-9090).
Integrated Power Designs NXT-100-1002-CHCO Features
View More
For specific information on the IPD NXT-100-1002-CHCO please view the datasheet
Other single output models in the NXT-100 series: 2.5 volt-NXT-100-1001-CHCO; 5 volt-NXT-100-1003-CHCO; 12 volt-NXT-100-1004-CHCO; 15 volt-NXT-100-1005-CHCO; 24 volt-NXT-100-1006-CHCO; 28 volt-NXT-100-1007-CHCO; 48 volt-NXT-100-1008-CHCO
| Price | $123.00 |
|---|---|
| Manufacturer | IPD |
| Application | Industrial (ITE), Medical |
| Package Type | Enclosed |
| AC Input (VAC) | 85~264 |
| Number Outputs | 1 |
| Voltage - Output 1 (VDC) | 3.3 |
| Output Current 1 | 20A |
| Power Output (W) | 66 |
| Length | 4.81in (121.69mm) |
| Width | 2.59in (65.53mm) |
| Height | 1.30in (32.89mm) |
| Cooling | Fanless |
| Operating Temperature | 0C ~ 70C (with derating) |
| Efficiency | 87% |
| Weight (lbs) | 1.000000 |
| Country of Origin | U.S.A. |
| Product Series | NXT-100 |
Get Help Finding the Right Power Supply: Power Requirement Form
