Mean Well NSP-100-5 (100W 5V)
- Buy 5 for $33.10 each and save 5%
- Buy 10 for $31.70 each and save 9%
- Buy 20 for $30.70 each and save 12%
MEAN WELL Single Output, Industrial, Medical AC-DC Converter, Enclosed Package, 100 Watts, Input Voltage Range: 85~305VAC, Output Voltage: 5VDC, Output Current: 20A, Connection: Screw Terminal
More Details

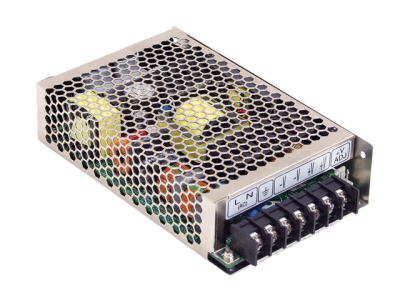

The MEAN WELL NSP-100-5 is a industrial and medical safety certified, single output, AC-DC power supply. The nominal output is 5 volts DC at 20 amps, with a maximum power output of 100 watts. It accepts an AC input voltage of 85~305 and has an efficiency rating of 90%. The NSP-100-5 has an Enclosed package type with an operating temperature range of -40C to +85C. It has a fanless design for silent operation and its dimensions are 3.90 (L) x 3.82 (W) x 1.18 (H) inches. If you have questions about this MEAN WELL AC-DC power supply please contact us through our web chat or call us (408-733-9090).
MEAN WELL NSP-100-5 Features
View More
NSP-100 Series Description: The NSP-100 Series from MEAN WELL is a high performance 100W AC-DC power supply built for reliability in medical, industrial, and commercial systems. With active PFC and an ultrawide 85–305VAC input range, it supports worldwide operation in a slim 99 × 97 × 30mm package, helping engineers maximize installation space. Delivering up to 92% efficiency with standby power as low as 0.3W, the NSP-100 reduces energy waste while supporting sustainability goals. Its constant current design with 200% peak power capability (12V~60V output models only) ensures dependable performance for demanding loads, while the fanless, convection cooled design improves long term reliability. The supply operates across a –40°C to +85°C range (+60°C at full load), making it suitable for harsh environments. The NSP-100 meets key safety standards including IEC/EN/UL 62368-1, 60601-1 (2 x MOPP), 60335-1, and 61558-1, with low leakage current (<350µA) that supports BF rated medical equipment. Additional features include remote ON/OFF control, conformal coated PCBs for durability, and comprehensive protection circuits. Backed by a 5 year warranty, the NSP-100 is a cost-effective, energy efficient, and medically certified power supply, ideal for industrial automation, healthcare systems, and laboratory equipment.
For specific information on the MEAN WELL NSP-100-5 please view the datasheet
Other models in the NSP-100 series: 7.5 volt-NSP-100-7.5; 12 volt-NSP-100-12; 15 volt-NSP-100-15; 24 volt-NSP-100-24; 27 volt-NSP-100-27; 36 volt-NSP-100-36; 48 volt-NSP-100-48; 60 volt-NSP-100-60
| Price | $34.80 |
|---|---|
| Manufacturer | Mean Well |
| Application | Industrial (ITE), Medical |
| Package Type | Enclosed |
| AC Input (VAC) | 85~305 |
| Number Outputs | 1 |
| Voltage - Output 1 (VDC) | 5 |
| Output Current 1 | 20A |
| Power Output (W) | 100 |
| Length | 3.90in (99.00mm) |
| Width | 3.82in (97.00mm) |
| Height | 1.18in (30.00mm) |
| Cooling | Fanless |
| Operating Temperature | -40C ~ 85C (with derating) |
| Efficiency | 90% |
| Weight (lbs) | 0.600000 |
| Country of Origin | China |
| Product Series | NSP-100 |
