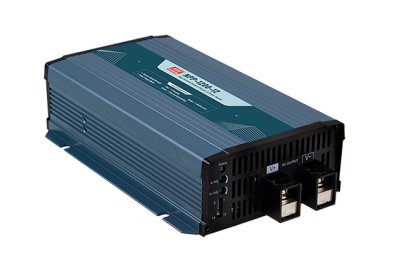

Mean Well NPB-1200-24 (1210W 28.8V)
SKU
NPB-1200-24
Authorized MEAN WELL
Stocking Distributor
$286.90
- Buy 5 for $273.30 each and save 5%
- Buy 10 for $261.20 each and save 9%
- Buy 20 for $253.70 each and save 12%
MEAN WELL Single Output, Battery Charger AC-DC Converter, Enclosed Package, 1210 Watts, Input Voltage Range: 90~264VAC, Output Voltage: 28.8VDC, Output Current: 36A, Connection: Screw Terminal
More Details
The MEAN WELL NPB-1200-24 is a battery charger, single output, AC-DC power supply. The nominal output is 28.8 volts DC at 36 amps, with a maximum power output of 1210 watts. It accepts an AC input voltage of 90~264 and has an efficiency rating of 93%. The NPB-1200-24 has an Enclosed package type with an operating temperature range of -30C to +70C. It includes a built-in fan for active cooling and its dimensions are 9.84 (L) x 6.22 (W) x 2.64 (H) inches. If you have questions about this MEAN WELL AC-DC power supply please contact us through our web chat or call us (408-733-9090).
MEAN WELL NPB-1200-24 Features
View More
For specific information on the MEAN WELL NPB-1200-24 please view the datasheet
Other models in the NPB-1200 series: 14.4 volt-NPB-1200-12; 57.6 volt-NPB-1200-48
| Price | $286.90 |
|---|---|
| Manufacturer | Mean Well |
| Application | Battery Charger |
| Package Type | Enclosed |
| AC Input (VAC) | 90~264 |
| Number Outputs | 1 |
| Voltage - Output 1 (VDC) | 28.8 |
| Output Current 1 | 36A |
| Power Output (W) | 1210 |
| Length | 9.84in (250.00mm) |
| Width | 6.22in (158.00mm) |
| Height | 2.64in (67.00mm) |
| Cooling | Fan Cooled |
| Operating Temperature | -30C ~ 70C (with derating) |
| Efficiency | 93% |
| Weight (lbs) | 4.255650 |
| Country of Origin | China |
| Product Series | NPB-1200 |
Get Help Finding the Right Power Supply: Power Requirement Form
