MEAN WELL
XTR 3-Phase DIN Rail Power Supplies
240 to 960 Watts. 12 ~ 48 Volt Output Options. 3-Phase AC Input. Global Safety Certs. Parallel Function up to 3840W. High Efficiency. Compact Design.
MEAN WELL XTR power supplies are ultra-slim, 3-phase DIN rail AC-DC power supplies available in 240W, 480W, and 960W models. The available outputs of the XTR DIN Rail power supplies are 12V, 24V, 36V, or 48V DC, with high efficiency and low inrush current, making them ideal for industrial control panels, automation, and marine applications. Bravo Electro stocks the full XTR-240, XTR-480, and XTR-960 family with multiple terminal options so you can choose the right XTR power supply for your design.
Introducing MEAN WELL XTR 3-Phase DIN Rail Power Supplies
Power your panel without wasting space or energy. The MEAN WELL XTR Series is a new line of ultra slim, 3-phase DIN-rail power supplies delivering 12V, 24V, 36V, or 48V at 240W, 480W, or 960W. With a wide 320–600 Vac input range, fanless design, and global safety certifications, including ATEX/IECEx and DNV the XTR Series is built for tough industrial, remote, or marine environments. It also includes smart features like active current sharing up to 3840W, DC OK relay contacts, and remote ON/OFF for efficient, scalable systems.
Building on the foundation of the proven TDR Series, the XTR Series delivers significant upgrades in performance, protection, and flexibility. Let’s take a closer look at how the XTR stacks up against the TDR and why it might be the better fit for your next project.
MEAN WELL XTR vs TDR DIN Rail Power Supplies (Side by Side Comparison)
Explore the advantages of the new XTR Series over the legacy TDR Series. This detailed comparison highlights input ranges, output options, certifications, and advanced features—so you can confidently choose the right DIN rail power supply for your application.
| Feature | XTR Series NEW | TDR Series |
|---|---|---|
| Input Voltage (Vin) | 3-Phase: 320–600Vac | 3-Phase: 340–550Vac |
| Inrush Current | 10A / 400Vac | 50–60A / 400Vac (by model) |
| Output Voltage (Vout) | 12V, 24V, 36V, 48V (XTR-960: without 12V) | 24V, 48V |
| Output Wattage | 240W / 480W / 960W (150~200% peak power) | 240W / 480W / 960W (130% peak power) |
| Efficiency | 92%–96% (by model) | 92%–94.5% (by model) |
| Parallel Function | 3+1 XTR-960 up to 3840W XTR-480 up to 1920W XTR-240 up to 960W |
3+1 3840 Watts (TDR-960) |
| DC OK Relay Contact | Yes | Yes (TDR-240/960) |
| Remote ON/OFF | Yes (XTR-480/960) | No |
| O-Ring FET | Yes (XTR-480/960) | No |
| Operating Temperature | –40°C to +85°C* | –30°C to +70°C* |
| Over Voltage Category | OVC III | N/A |
| PCB Conformal Coating | Yes | N/A |
| Certifications | UL, CE, CB, SEMI F47, TUV, AS/NZ, KCC, EAC, UKCA, + more |
UL, CE, CB, EAC, UKCA |
| EMC | EMI-EN55032 Class B ESD-Contact +/-8KV, Air +/-15KV |
EMI-EN55032 Class B ESD-Contact +/-4KV, Air +/-8KV |
| Dimensions (W x H x D) |
240W: 48 x 125.2 x 125 mm (-16%) 480W: 63 x 125.2 x 125 mm (-28%) 960W: 96 x 125.2 x 132 mm (-23%) |
240W: 63 x 125.2 x 113.5 mm 480W: 85.5 x 125.2 x 128.5 mm 960W: 110 x 125.2 x 150 mm |
| Terminal Block Type | Screw / Lever / Push-in | Screw |
| Warranty | 5 Years | 3 Years |
* Derating may apply based on load and ventilation.

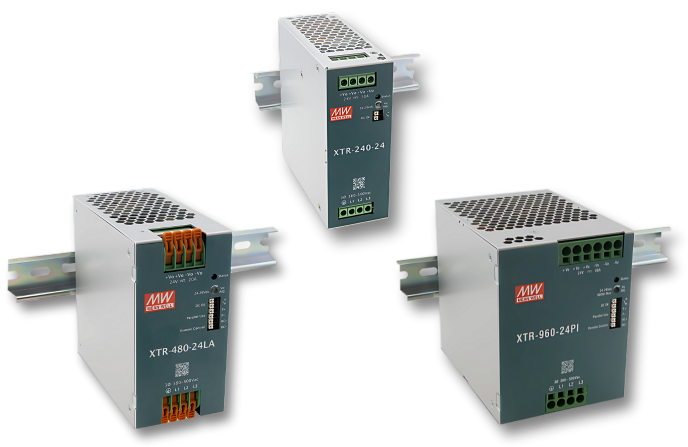

Mean Well XTR Power Supply Lineup - XTR-240, XTR-480, XTR-960
Connection Options: screw terminal, lever actuated, push-in. Multiple features in a compact package.
XTR-240 DIN Rail Power Supplies (240W)
- 3-Phase 320~600Vac input
- 240 watt output (nominal)
- 12VDC, 24VDC, 36VDC, 48VDC output voltage options
- -40°C to +85°C operating temperature range
- 150% peak power capability
- Up to 93.5% efficiency
- Slim Size 4.92 x 1.89 x 4.93in
Pricing and Datasheets:
(choose connection option)
XTR-480 DIN Rail Power Supplies (480W)
- 3-Phase 320~600Vac input
- 480 watt output (nominal)
- 12VDC, 24VDC, 36VDC, 48VDC output voltage options
- -40°C to +85°C operating temperature range
- 200% peak power capability
- Up to 95.5% efficiency
- Slim Size 4.92 x 2.48 x 4.93in
Pricing and Datasheets:
(choose connection option)
XTR-960 DIN Rail Power Supplies (960W)
- 3-Phase 320~600Vac input
- 960 watt output (nominal)
- 24VDC, 36VDC, 48VDC output voltage options
- -40°C to +85°C operating temperature range
- 200% peak power capability
- Up to 96% efficiency
- Slim Size 5.20 x 3.78 x 4.93in
Pricing and Datasheets:
(choose connection option)
CAN'T FIND WHAT YOU NEED?
LET US HELP!
High Efficiency, Slim DIN Rail Power Supplies for Demanding Panels
All the power you need, all the certifications you demand, in half the width you expect.
Key Features of Mean Well XTR Power Supplies
When designing high performance control panels, not all 3-phase DIN rail power supplies deliver the same reliability, power flexibility, or ease of integration. The MEAN WELL XTR Series stands out with advanced features engineered for demanding industrial applications, whether you need power redundancy, fanless operation, or installation friendly options.
Parallel function capability up to 3840 watts, for MEAN WELL XTR power supplies.
The MEAN WELL XTR series DIN Rail power supplies feature parallel function capability up to 3840W, enabling seamless scalability for high power industrial applications. This functionality allows multiple units to be connected, ensuring reliable power distribution and enhanced system redundancy with built in ORing FETs for improved stability (XTR-480/960 models).
Ideal for demanding environments like industrial automation and renewable energy systems, the parallel capability supports increased output capacity while maintaining high efficiency up to 96%. This flexibility simplifies system design, reduces downtime, and meets diverse power requirements with ease.
Constant current with 150~200% peak power and fanless design.
The MEAN WELL XTR series DIN Rail power supplies deliver constant current output with 150~200% peak power for five second bursts, ideal for motor startups or load surges, ensuring stable performance without tripping. This allows selecting a supply for average load, saving cost and reducing heat.
Its fanless, convection-cooled design eliminates moving parts, cutting noise and dust while achieving an MTBF over 900,000 hours. Reliable from –40°C to +85°C, it provides silent, efficient power for industrial, telecom, and renewable energy systems.
Long term reliability, high quality and 5 Year warranty.
The MEAN WELL XTR series DIN Rail power supplies ensure long term reliability with a robust design, achieving an MTBF exceeding 900,000 hours for consistent performance in demanding industrial environments. Crafted with high quality components, these power supplies deliver exceptional durability and efficiency up to 96%, minimizing downtime in applications like automation and telecom.
Backed by a 5 year warranty, the XTR series offers peace of mind, ensuring dependable power solutions for critical systems. This combination of reliability, quality, and extended warranty makes the XTR series a trusted choice for long lasting performance.
Connection options to simplify the installation process.
The MEAN WELL XTR series offers three connection options, screw terminal (blank suffix), push-in (PI suffix), and lever actuated (LA suffix), providing flexibility to suit various installation needs. Screw terminals ensure a secure, reliable connection ideal for high vibration environments, while push-in terminals allow for quick, tool free wiring, speeding up installation. Lever actuated terminals simplify connections by offering easy, tool free operation, making them user friendly for frequent reconnections.
These options streamline the installation process by accommodating different wiring preferences and skill levels, enhancing efficiency and adaptability in industrial applications.
NEED A CUSTOM CONNECTOR OR OUTPUT?
TELL US WHAT YOU'RE LOOKING FOR.
Safety Certifications for MEAN WELL XTR DIN Rail Power Supplies
The MEAN WELL XTR series 3-phase DIN Rail power supplies are built with an extensive range of safety standards and certifications, ensuring top tier reliability for industrial and global applications. Key approvals include IEC 62368-1 for ITE safety, IEC 61558-1/-2-16 for industrial use, and UL 61010 with Class I, Div. 2 for hazardous locations, making them ideal for demanding environments. Additional certifications like CB, UL, cUL, CE, UKCA, EAC, CCC, KC, and IS13252 provide worldwide compliance, while SEMI F47 and DNV (GL type) add versatility for voltage sensitive and marine settings. The XTR series a trusted choice for robust, secure power solutions, here are a few of the featured safety certifications and what they mean.
- IEC 62368-1 & BS EN/IEC 62368-1: Ensures ITE safety for reliable performance in technology driven applications.
- UL 61010 & Class I, Div. 2: Guarantees safety in hazardous locations, perfect for industrial challenges.
- CB Scheme & CE Mark: Offers global safety recognition for seamless international use.
- IEC 61558-1/-2-16: Provides industrial grade safety for heavy-duty 3-phase power needs.
- SEMI F47: Ensures resilience against voltage sags, ideal for sensitive industrial equipment.
- DNV GL Type: Confirms suitability for marine environments, enhancing versatility.
Common Applications for MEAN WELL XTR Power Supplies
The MEAN WELL XTR Series is designed for engineers and system integrators building industrial automation, control panels, and power critical systems. Its 3-phase input range, fanless thermal design, and parallel redundancy features make it a smart choice for demanding environments where performance and uptime matter most. Here are a few examples of where the XTR Series delivers real world value:
Industrial Automation Panels
Factory automation systems often rely on 24VDC control power for PLCs, relays, sensors, and servo systems. The XTR Series’ wide 320–600Vac 3-phase input allows it to handle voltage fluctuations commonly found in industrial settings, while its compact DIN rail form factor conserves panel space. The fanless operation ensures long term reliability, even in high vibration or dusty environments. For engineers designing UL- or CE-certified control cabinets, the XTR delivers the performance and compliance needed for global deployment.
Redundant Power Systems for Control Cabinets
In mission critical environments, like data centers, manufacturing lines, or utility control systems, power redundancy is essential. The XTR Series supports active current sharing and includes built-in ORing FETs, enabling seamless N+1 redundant configurations without external modules. If one unit fails, the others automatically pick up the load, minimizing downtime and avoiding system resets. With DC OK relay contacts and remote ON/OFF control, predictive maintenance and load monitoring become easier, helping teams improve uptime and reduce service calls.
Electric Vehicle (EV) Charging Infrastructure
EV charging stations often require robust, scalable DC power systems that can operate in outdoor or semi-outdoor enclosures. The XTR Series is ideal for this environment thanks to its –40°C to +85°C operating range, high peak power (150–200%), and 5 year warranty. Its support for parallel output lets designers scale up to 3840W when powering multiple modules or high-power DC loads. With global certifications including ATEX/IECEx and DNV, it’s ready for use in charging stations located in harsh climates or along critical transport corridors.
