MEAN WELL Medical Power Supplies
Power your healthcare innovations with MEAN WELL Medical Power Supplies, available at Bravo Electro. Engineered for safety and reliability, these power supplies meet stringent medical standards (e.g., EN60601-1), making them perfect for hospital equipment, diagnostic devices, and patient monitoring systems. Explore standout options like the LOP Series, RPS series (compact desktop units), MPS series, and GSM series (adapters) tailored for medical applications.
MEAN WELL’s medical PSUs offer low leakage current, high efficiency, and medical safety certifications for global compliance, ensuring peace of mind for OEMs and engineers. Whether you’re designing portable devices or stationary medical setups, find the right voltage (5V to 48V) and wattage (up to 1000W) for your needs. Shop now at Bravo Electro for expert advice and quick delivery!
MEAN WELL Single Output, Medical AC-DC Converter, External-Wall Mount Package, 20 Watts, Input Voltage Range: 80~264VAC, Output Voltage: 5VDC, Output Current: 4A, Connection: Barrel Plug - 2.1 x 5.5 x 11mm
More Details
The MEAN WELL GSM25U05-P1J is a medical safety certified, single output, AC-DC power supply. The nominal output is 5 volts DC at 4 amps, with a maximum power output of 20 watts. It accepts an AC input voltage of 80~264 and has an efficiency rating of 80%. The GSM25U05-P1J has an External or Adapter package type with an operating temperature range of -25C to +60C. It has a fanless design for silent operation and its dimensions are 3.11 (L) x 2.13 (W) x 1.30 (H) inches. If you have questions about this MEAN WELL AC-DC power supply please contact us through our web chat or call us (408-733-9090).$16.20 As low as $14.30MEAN WELL Single Output, Medical AC-DC Converter, External-Wall Mount Package, 20 Watts, Input Voltage Range: 80~264VAC, Output Voltage: 5VDC, Output Current: 4A, Connection: Barrel Plug - 2.1 x 5.5 x 11mm
More Details
The MEAN WELL GSM25E05-P1J is a medical safety certified, single output, AC-DC power supply. The nominal output is 5 volts DC at 4 amps, with a maximum power output of 20 watts. It accepts an AC input voltage of 80~264 and has an efficiency rating of 80%. The GSM25E05-P1J has an External or Adapter package type with an operating temperature range of -25C to +60C. It has a fanless design for silent operation and its dimensions are 3.11 (L) x 2.13 (W) x 1.30 (H) inches. If you have questions about this MEAN WELL AC-DC power supply please contact us through our web chat or call us (408-733-9090).$16.20 As low as $14.30MEAN WELL Single Output, Medical AC-DC Converter, External-Wall Mount Package, 15 Watts, Input Voltage Range: 80~264VAC, Output Voltage: 5VDC, Output Current: 3A, Connection: Barrel Plug - 2.1 x 5.5 x 11mm
More Details
The MEAN WELL GSM18U05-P1J is a medical safety certified, single output, AC-DC power supply. The nominal output is 5 volts DC at 3 amps, with a maximum power output of 15 watts. It accepts an AC input voltage of 80~264 and has an efficiency rating of 80%. The GSM18U05-P1J has an External or Adapter package type with an operating temperature range of -25C to +60C. It has a fanless design for silent operation and its dimensions are 3.11 (L) x 2.13 (W) x 1.30 (H) inches. If you have questions about this MEAN WELL AC-DC power supply please contact us through our web chat or call us (408-733-9090).$16.00 As low as $14.10MEAN WELL Single Output, Medical AC-DC Converter, External-Wall Mount Package, 15 Watts, Input Voltage Range: 80~264VAC, Output Voltage: 5VDC, Output Current: 3A, Connection: Barrel Plug - 2.1 x 5.5 x 11mm
More Details
The MEAN WELL GSM18E05-P1J is a medical safety certified, single output, AC-DC power supply. The nominal output is 5 volts DC at 3 amps, with a maximum power output of 15 watts. It accepts an AC input voltage of 80~264 and has an efficiency rating of 80%. The GSM18E05-P1J has an External or Adapter package type with an operating temperature range of -25C to +60C. It has a fanless design for silent operation and its dimensions are 3.11 (L) x 2.13 (W) x 1.30 (H) inches. If you have questions about this MEAN WELL AC-DC power supply please contact us through our web chat or call us (408-733-9090).$16.00 As low as $14.10MEAN WELL Single Output, Medical AC-DC Converter, External-Wall Mount Package, 30 Watts, Input Voltage Range: 80~264VAC, Output Voltage: 5VDC, Output Current: 6A, Connection: Barrel Plug - 2.1 x 5.5 x 11mm
More Details
The MEAN WELL GSM60U05-P1J is a medical safety certified, single output, AC-DC power supply. The nominal output is 5 volts DC at 6 amps, with a maximum power output of 30 watts. It accepts an AC input voltage of 80~264 and has an efficiency rating of 80%. The GSM60U05-P1J has an External or Adapter package type with an operating temperature range of -30C to +70C. It has a fanless design for silent operation and its dimensions are 2.97 (L) x 1.26 (W) x 1.87 (H) inches. If you have questions about this MEAN WELL AC-DC power supply please contact us through our web chat or call us (408-733-9090).$31.92 As low as $28.22MEAN WELL Single Output, Medical AC-DC Converter, External-Wall Mount Package, 30 Watts, Input Voltage Range: 80~264VAC, Output Voltage: 5VDC, Output Current: 6A, Connection: Barrel Plug - 2.1 x 5.5 x 11mm
More Details
The MEAN WELL GSM60E05-P1J is a medical safety certified, single output, AC-DC power supply. The nominal output is 5 volts DC at 6 amps, with a maximum power output of 30 watts. It accepts an AC input voltage of 80~264 and has an efficiency rating of 80%. The GSM60E05-P1J has an External or Adapter package type with an operating temperature range of -30C to +70C. It has a fanless design for silent operation and its dimensions are 2.97 (L) x 1.26 (W) x 1.87 (H) inches. If you have questions about this MEAN WELL AC-DC power supply please contact us through our web chat or call us (408-733-9090).$31.92 As low as $28.22MEAN WELL Single Output, Medical AC-DC Converter, External-Desktop Package, 30 Watts, Input Voltage Range: 80~264VAC, Output Voltage: 5VDC, Output Current: 6A, Connection: Barrel Plug - 2.1 x 5.5 x 11mm
More Details
The MEAN WELL GSM60B05-P1J is a medical safety certified, single output, AC-DC power supply. The nominal output is 5 volts DC at 6 amps, with a maximum power output of 30 watts. It accepts an AC input voltage of 80~264 and has an efficiency rating of 82%. The GSM60B05-P1J has an External or Adapter package type with an operating temperature range of -30C to +70C. It has a fanless design for silent operation and its dimensions are 4.92 (L) x 1.97 (W) x 1.24 (H) inches. If you have questions about this MEAN WELL AC-DC power supply please contact us through our web chat or call us (408-733-9090).$23.90 As low as $21.20MEAN WELL Single Output, Medical AC-DC Converter, External-Desktop Package, 25 Watts, Input Voltage Range: 80~264VAC, Output Voltage: 5VDC, Output Current: 5A, Connection: Barrel Plug - 2.1 x 5.5 x 11mm
More Details
The MEAN WELL GSM40B05-P1J is a medical safety certified, single output, AC-DC power supply. The nominal output is 5 volts DC at 5 amps, with a maximum power output of 25 watts. It accepts an AC input voltage of 80~264 and has an efficiency rating of 81%. The GSM40B05-P1J has an External or Adapter package type with an operating temperature range of -30C to +70C. It has a fanless design for silent operation and its dimensions are 4.92 (L) x 1.97 (W) x 1.24 (H) inches. If you have questions about this MEAN WELL AC-DC power supply please contact us through our web chat or call us (408-733-9090).$21.70 As low as $19.20MEAN WELL Single Output, Medical AC-DC Converter, External-Desktop Package, 23 Watts, Input Voltage Range: 80~264VAC, Output Voltage: 5VDC, Output Current: 5A, Connection: Barrel Plug - 2.1 x 5.5 x 11mm
More Details
The MEAN WELL GSM36B05-P1J is a medical safety certified, single output, AC-DC power supply. The nominal output is 5 volts DC at 4.5 amps, with a maximum power output of 23 watts. It accepts an AC input voltage of 80~264 and has an efficiency rating of 80%. The GSM36B05-P1J has an External or Adapter package type with an operating temperature range of -25C to +60C. It has a fanless design for silent operation and its dimensions are 3.11 (L) x 2.13 (W) x 1.30 (H) inches. If you have questions about this MEAN WELL AC-DC power supply please contact us through our web chat or call us (408-733-9090).$17.10 As low as $15.10MEAN WELL Single Output, Medical AC-DC Converter, External-Desktop Package, 30 Watts, Input Voltage Range: 80~264VAC, Output Voltage: 5VDC, Output Current: 6A, Connection: Barrel Plug - 2.1 x 5.5 x 11mm
More Details
The MEAN WELL GSM60A05-P1J is a medical safety certified, single output, AC-DC power supply. The nominal output is 5 volts DC at 6 amps, with a maximum power output of 30 watts. It accepts an AC input voltage of 80~264 and has an efficiency rating of 82%. The GSM60A05-P1J has an External or Adapter package type with an operating temperature range of -30C to +70C. It has a fanless design for silent operation and its dimensions are 4.92 (L) x 1.97 (W) x 1.24 (H) inches. If you have questions about this MEAN WELL AC-DC power supply please contact us through our web chat or call us (408-733-9090).$23.90 As low as $21.20MEAN WELL Single Output, Medical AC-DC Converter, External-Desktop Package, 25 Watts, Input Voltage Range: 80~264VAC, Output Voltage: 5VDC, Output Current: 5A, Connection: Barrel Plug - 2.1 x 5.5 x 11mm
More Details
The MEAN WELL GSM40A05-P1J is a medical safety certified, single output, AC-DC power supply. The nominal output is 5 volts DC at 5 amps, with a maximum power output of 25 watts. It accepts an AC input voltage of 80~264 and has an efficiency rating of 81%. The GSM40A05-P1J has an External or Adapter package type with an operating temperature range of -30C to +70C. It has a fanless design for silent operation and its dimensions are 4.92 (L) x 1.97 (W) x 1.24 (H) inches. If you have questions about this MEAN WELL AC-DC power supply please contact us through our web chat or call us (408-733-9090).$21.70 As low as $19.20MEAN WELL Single Output, Medical AC-DC Converter, External-Wall Mount Package, 30 Watts, Input Voltage Range: 80~264VAC, Output Voltage: 5VDC, Output Current: 6A, Connection: Barrel Plug - 2.1 x 5.5 x 11mm
More Details
The MEAN WELL GEM60I05-P1J is a medical safety certified, single output, AC-DC power supply. The nominal output is 5 volts DC at 6 amps, with a maximum power output of 30 watts. It accepts an AC input voltage of 80~264 and has an efficiency rating of 80%. The GEM60I05-P1J has an External or Adapter package type with an operating temperature range of -30C to +70C. It has a fanless design for silent operation and its dimensions are 2.97 (L) x 1.54 (W) x 2.21 (H) inches. If you have questions about this MEAN WELL AC-DC power supply please contact us through our web chat or call us (408-733-9090).$31.73 As low as $28.06MEAN WELL Single Output, Medical AC-DC Converter, External-Wall Mount Package, 25 Watts, Input Voltage Range: 80~264VAC, Output Voltage: 5VDC, Output Current: 5A, Connection: Barrel Plug - 2.1 x 5.5 x 11mm
More Details

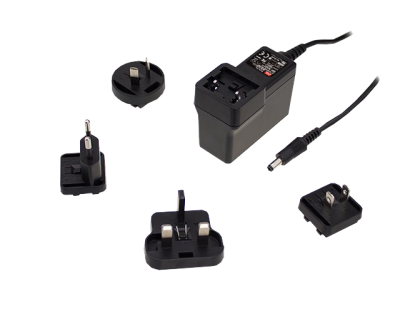

The MEAN WELL GEM40I05-P1J is a medical safety certified, single output, AC-DC power supply. The nominal output is 5 volts DC at 5 amps, with a maximum power output of 25 watts. It accepts an AC input voltage of 80~264 and has an efficiency rating of 84%. The GEM40I05-P1J has an External or Adapter package type with an operating temperature range of -25C to +70C. It has a fanless design for silent operation and its dimensions are 2.97 (L) x 1.54 (W) x 2.21 (H) inches. If you have questions about this MEAN WELL AC-DC power supply please contact us through our web chat or call us (408-733-9090).$28.50 As low as $25.20MEAN WELL Single Output, Medical AC-DC Converter, External-Wall Mount Package, 20 Watts, Input Voltage Range: 80~264VAC, Output Voltage: 5VDC, Output Current: 4A, Connection: Barrel Plug - 2.1 x 5.5 x 11mm
More Details
The MEAN WELL GEM30I05-P1J is a medical safety certified, single output, AC-DC power supply. The nominal output is 5 volts DC at 4 amps, with a maximum power output of 20 watts. It accepts an AC input voltage of 80~264 and has an efficiency rating of 82%. The GEM30I05-P1J has an External or Adapter package type with an operating temperature range of -25C to +70C. It has a fanless design for silent operation and its dimensions are 2.97 (L) x 1.54 (W) x 2.21 (H) inches. If you have questions about this MEAN WELL AC-DC power supply please contact us through our web chat or call us (408-733-9090).$26.03 As low as $23.02MEAN WELL Single Output, Medical AC-DC Converter, External-Wall Mount Package, 15 Watts, Input Voltage Range: 80~264VAC, Output Voltage: 5VDC, Output Current: 3A, Connection: Barrel Plug - 2.1 x 5.5 x 11mm
More Details
The MEAN WELL GEM18I05-P1J is a medical safety certified, single output, AC-DC power supply. The nominal output is 5 volts DC at 3 amps, with a maximum power output of 15 watts. It accepts an AC input voltage of 80~264 and has an efficiency rating of 80%. The GEM18I05-P1J has an External or Adapter package type with an operating temperature range of -20C to +50C. It has a fanless design for silent operation and its dimensions are 2.97 (L) x 1.54 (W) x 2.21 (H) inches. If you have questions about this MEAN WELL AC-DC power supply please contact us through our web chat or call us (408-733-9090).$16.91 As low as $14.95
