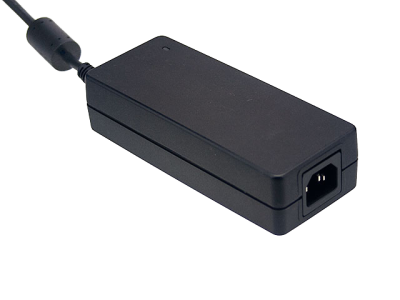

Product images shown are for illustration purposes only and may not be an exact representation of the product.

MEAN WELL AC-DC Industrial External-Desktop 90 Watts 48VDC out

More Details
The MEAN WELL GST90A48-P1M is a industrial, single output, AC-DC power supply. The nominal output is rated for 48 Volts DC at 1.87 amps (90 watts). This power converter accepts an AC input range of 90~264 and has an efficiency rating of 91%. The GST90A48-P1M is an External package type with an operating temperature range of -30C to +70C. This AC-DC converter has no on board fan and its dimensions are 145 (L) x 60 (W) x 32 (H) mm. If you have questions about this MEAN WELL AC-DC power supply please contact us through our web chat or call us (408-733-9090).

MEAN WELL GST90A48-P1M Features

AC-DC Industrial External-Desktop Single output power supplyOutput: 48 volts, 1.87 amps, 90 wattsOutput Connector: barrel plug - 2.5 x 5.5 x 11mm (details in datasheet)Global certificatesUniversal AC input / Full range
View More3 pole AC inlet IEC320-C14, Class I power unitBuilt-in active PFC functionNo load power consumption< 0.15WEnergy efficiency Level VIComply with EISA 2007/ DoE, NRCan, Korea K-MEPS, AU/NZ MEPS, EU ErP and CoC Version 5Protections: Short circuit / Overload / Over voltage / Over temperatureFully enclosed plastic case-30~+70°C wide range working temperatureLED indicator for power on3 years warranty

For specific information on the MEAN WELL GST90A48-P1M please view the datasheet

Other models in the GST90A series: 12 volt-GST90A12-P1M; 15 volt-GST90A15-P1M; 19 volt-GST90A19-P1M; 24 volt-GST90A24-P1M

Frequently Bought Together

picture showing a three prong 5-15P Nema plug and a C13 connectorpicture showing a three prong 5-15P Nema plug and a C13 connector

Power Cord (IEC320-C14)

More Information
ManufacturerMean Well
Package TypeExternal-Desktop
AC InputUniversal Input - Full Range, 90~264
Voltage Output48.0
Power Output (W)90
CoolingNo On Board Fan
GST90A_spec (1.75 MB)
