Mean Well GSM90B12-P1M

Image at top has 5 yellow stars, below it is the red Mean Well logo.Image at top has 5 yellow stars, below it is the red Mean Well logo.

  Authorized MEAN WELL

  Stocking Distributor

  • Buy 5 for $32.04 each and save 5%
  • Buy 10 for $30.62 each and save 9%
  • Buy 20 for $29.74 each and save 12%

Product images shown are for illustration purposes only and may not be an exact representation of the product.

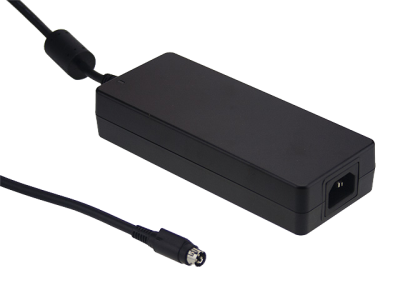

MEAN WELL AC-DC Medical External-Desktop 80 Watts 12VDC out

More Details
The MEAN WELL GSM90B12-P1M is a Medical, single output, AC-DC power supply. The nominal output is rated for 12 Volts DC at 6.67 amps (80 watts). This power converter accepts an AC input range of 80~264 and has an efficiency rating of 88%. The GSM90B12-P1M is an External package type with an operating temperature range of -30C to +70C. This AC-DC converter has no on board fan and its dimensions are 145 (L) x 60 (W) x 32 (H) mm. If you have questions about this MEAN WELL AC-DC power supply please contact us through email, online chat or call us (408-733-9090).


AC-DC Medical External-Desktop Single output power supplyOutput: 12 volts, 6.67 amps, 80 watts2 pole AC inlet IEC320-C8, Class II power unitMedical safety approved (2 x MOPP) according to ANSI/AAMI ES60601-1 and IEC/EN60601-1

View MoreExtremely low leakage currentNo load power consumption<0.15WEnergy efficiency level VI and meet CoC Version 5-30~+70°C wide range working temperatureProtections: Short circuit / Overload / Over voltage / Over temperatureLED indicator for power onLifetime > 90K hours3 year warranty

For specific information on the MEAN WELL GSM90B12-P1M please view the datasheet

Other models in the GSM90B series: 15 volt-GSM90B15-P1M; 19 volt-GSM90B19-P1M; 24 volt-GSM90B24-P1M; 48 volt-GSM90B48-P1M

More Information
ManufacturerMean Well
Package TypeExternal-Desktop
AC InputUniversal Input - Full Range, 80~264
Voltage Output12.0
Power Output (W)80
CoolingNo On Board Fan
GSM90B_spec (1.26 MB)
