IPD GRN-80-4005-CHCO (4 Output, 80W)

SKU
GRN-80-4005-CHCO
$109.12
  • Buy 5 for $106.93 each and save 2%
  • Buy 10 for $104.13 each and save 5%
  • Buy 20 for $102.13 each and save 6%

Tariff Status: Import tariffs may apply to U.S. shipments. Applicable tariff charges, if any, will be confirmed after order acknowledgment and prior to fulfillment, so there are no surprises.

Add to Wish List Add to Compare
Image emphasizing payment and purchase on this website is secure. Image shows a green shield with a lock, with words saying 100% Secure Image emphasizing payment and purchase on this website is secure. Image shows a green shield with a lock, with words saying 100% Secure

pdf download  GRN-80 Datasheet

IPD Quad Output AC-DC Converter, Enclosed Package, 80 Watts, Input Voltage Range: 85~264 VAC, Output Voltage: 3.5/ 5.2/ 18/ -18VDC, Output Current: 3.5/ 1/ 1.5/ 1.5A

More Details
The Integrated Power Designs GRN-80-4005-CHCO is a quad output, AC-DC power supply. The four outputs are 3.5V / 3.5A, 5.2V / 1A, 18V / 1.5A, -18V / 1.5A for a total power output of 80 watts. It accepts an AC input range of 85~264 and has an efficiency rating of 87%. The GRN-80-4005-CHCO is an Enclosed package type with an operating temperature range of 0C to +70C. This AC-DC converter has Medical and Industrial (ITE) safety certifications, features fanless design for quiet operation and its dimensions are 5.25 (L) x 3.25 (W) x 1.28 (H) inches. If you have questions about this IPD power supply please contact us through our web chat (lower right hand corner) or call us (408-733-9090).

Integrated Power Designs GRN-80-4005-CHCO Features

TARIFF FREE- IPD power supplies are proudly Made in the U.S.A.Includes a chassis and cover as called out by the -CHCO suffix in the part numberAC-DC, Medical and Industrial (ITE) safeties, enclosed type power supplyQuad Output: 3.5 volts / 3.5 amps, 5.2 volts / 1 amps, 18 volts / 1.5 amps, -18 volts / 1.5 amps, 80 total wattsCompact Size3 Year Warranty

View MoreUniversal 85-264V Input89% Peak Efficiency87% Average Efficiency<300mW No Load Input PowerIEC 60601-1 3rd ed. Medical Cert.IEC 62368-1 2nd ed. CertificationIEC 60601-1-2 4th ed. EMCClass B Emissions per EN55011/320-70°C Operating TemperatureRoHS Compliant

For specific information on the IPD GRN-80-4005-CHCO please view the datasheet

Other quad output models in the GRN-80 series: 3.3V/5V/12V/-12V-GRN-80-4001-CHCO; 5V/5V/12V/-12V-GRN-80-4002-CHCO; 5V/24V/12V/-12V-GRN-80-4003-CHCO; 5V/24V/15V/-15V-GRN-80-4004-CHCO

Specifications
Price$109.12
ManufacturerIPD
ApplicationIndustrial (ITE), Medical
Package TypeEnclosed
Number Outputs4
Power Output (W)80
Voltage - Output 1 (VDC)3.5
Output Current 13.5A
Voltage - Output 2 (VDC)5.2
Output Current 21A
Voltage - Output 3 (VDC)18
Output Current 31.5A
Voltage - Output 4 (VDC)-18
Output Current 41.5A
Length5.25in (132.83mm)
Width3.25in (82.23mm)
Height1.28in (32.38mm)
Operating Temperature0C ~ 70C (with derating)
CoolingFanless
Efficiency87%
Weight (lbs)0.800000
Country of OriginU.S.A.
Product SeriesGRN-80

Product images shown are for illustration purposes only and may not be an exact representation of the product.

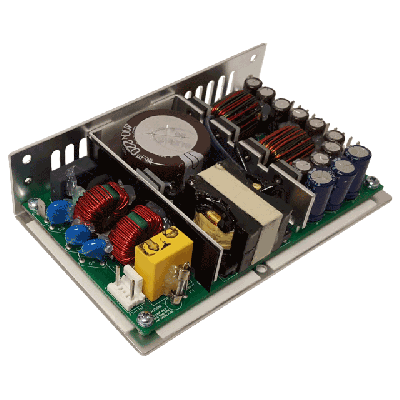

GRN-80-4005-CH IPD AC/DC Power Supply
