IPD GRN-60-1007-CHCO (60W 48V)
SKU
GRN-60-1007-CHCO
$58.37
- Buy 5 for $57.19 each and save 2%
- Buy 10 for $55.70 each and save 5%
- Buy 20 for $54.63 each and save 6%
IPD Single Output AC-DC Converter, Enclosed Package, 60 Watts, Input Voltage Range: 85~264 VAC, Output Voltage: 48VDC, Output Current: 1.3A
More Details

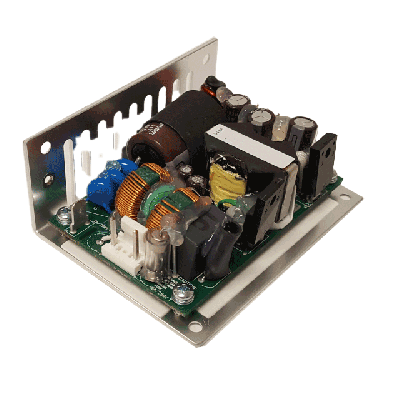

The Integrated Power Designs GRN-60-1007-CHCO is a single output, AC-DC power supply. The nominal output is rated for 48 volts at 1.3 amps (60 watts). It accepts an AC input range of 85~264 and has an efficiency rating of 0.87%. The GRN-60-1007-CHCO is an Enclosed package type with an operating temperature range of 0C to +70C. This AC-DC converter has Medical and Industrial (ITE) safety certifications, no on board fan and its dimensions are 3.2 (L) x 2.43 (W) x 1.28 (H) inches. If you have questions about this IPD power supply please contact us through our web chat (lower right hand corner) or call us (408-733-9090).
Integrated Power Designs GRN-60-1007-CHCO Features
View More
For specific information on the IPD GRN-60-1007-CHCO please view the datasheet
Other single output models in the GRN-60 series: 3.3 volt-GRN-60-1001-CHCO; 5 volt-GRN-60-1002-CHCO; 12 volt-GRN-60-1003-CHCO; 15 volt-GRN-60-1004-CHCO; 24 volt-GRN-60-1005-CHCO; 28 volt-GRN-60-1006-CHCO; 19 volt-GRN-60-1008-CHCO
| Price | $58.37 |
|---|---|
| Manufacturer | IPD |
| Application | Industrial (ITE), Medical |
| Package Type | Enclosed |
| AC Input (VAC) | 85~264 |
| Number Outputs | 1 |
| Voltage - Output 1 (VDC) | 48 |
| Output Current | 1.3A |
| Power Output (W) | 60 |
| Length | 3.20in (80.96mm) |
| Width | 2.43in (61.48mm) |
| Height | 1.28in (32.38mm) |
| Cooling | No On Board Fan |
| Operating Temperature | 0C ~ 70C (with derating) |
| Efficiency | 87% |
| Weight (lbs) | 0.350000 |
| Country of Origin | U.S.A. |
| Product Series | GRN-60 |
