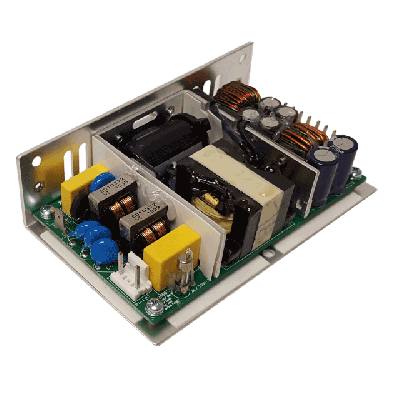

IPD GRN-45-3002-CHCO (3 Output, 45W)
SKU
GRN-45-3002-CHCO
$75.92
- Buy 5 for $74.39 each and save 2%
- Buy 10 for $72.44 each and save 5%
- Buy 20 for $71.05 each and save 6%
IPD Triple Output AC-DC Converter, Enclosed Package, 45 Watts, Input Voltage Range: 85~264 VAC, Output Voltage: 5/ 15/ -15VDC, Output Current: 5/ 1/ 1A
More Details
The Integrated Power Designs GRN-45-3002-CHCO is a triple output, AC-DC power supply. The three outputs are 5V / 5A, 15V / 1A, -15V / 1A for a total power output of 45 watts. It accepts an AC input range of 85~264 and has an efficiency rating of 87%. The GRN-45-3002-CHCO is an Enclosed package type with an operating temperature range of 0C to +70C. This AC-DC converter has Medical and Industrial (ITE) safety certifications, features fanless design for quiet operation and its dimensions are 4.5 (L) x 2.75 (W) x 1.28 (H) inches. If you have questions about this IPD power supply please contact us through our web chat (lower right hand corner) or call us (408-733-9090).
Integrated Power Designs GRN-45-3002-CHCO Features
View More
For specific information on the IPD GRN-45-3002-CHCO please view the datasheet
Other triple output models in the GRN-45 series: 5V / 12V / -12V-GRN-45-3001-CHCO; 5.5V / 8V / 12V-GRN-45-3003-CHCO
| Price | $75.92 |
|---|---|
| Manufacturer | IPD |
| Application | Industrial (ITE), Medical |
| Package Type | Enclosed |
| Number Outputs | 3 |
| Power Output (W) | 45 |
| Voltage - Output 1 (VDC) | 5 |
| Output Current 1 | 5A |
| Voltage - Output 2 (VDC) | 15 |
| Output Current 2 | 1A |
| Voltage - Output 3 (VDC) | -15 |
| Output Current 3 | 1A |
| Length | 4.50in (113.85mm) |
| Width | 2.75in (69.58mm) |
| Height | 1.28in (32.38mm) |
| Operating Temperature | 0C ~ 70C (with derating) |
| Cooling | Fanless |
| Efficiency | 87% |
| Weight (lbs) | 0.650000 |
| Country of Origin | U.S.A. |
| Product Series | GRN-45 |
Get Help Finding the Right Power Supply: Power Requirement Form
