Delta DRL-24V480W1EN (480W 24V)
- Buy 20 for $95.82 each and save 3%
- Buy 50 for $94.17 each and save 4%
- Buy 100 for $92.69 each and save 6%
Delta Single Output, Industrial AC-DC Converter, DIN Rail Package, 480 Watts, Input Voltage Range: 90~264VAC, Output Voltage: 24VDC, Output Current: 20A, Connection: Screw Terminal
More Details

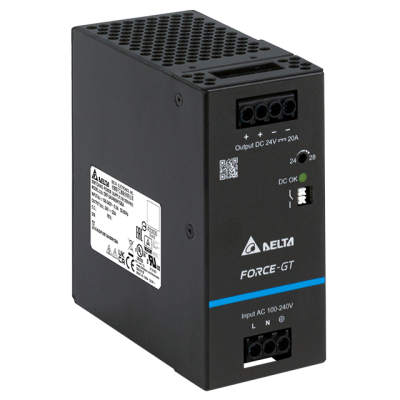

The Delta DRL-24V480W1EN is a industrial, 1 output, AC-DC power supply. The nominal output is 24 Volts DC at 20 amps, with a maximum power output of 480 watts. It accepts an AC input voltage of 90~264 and has an efficiency rating of 92%. The DRL-24V480W1EN has a DIN Rail mount package type with an operating temperature range of -40C to +70C. It features a fanless design for silent operation and its dimensions are 4.87 (L) x 2.2 (W) x 4.6 (H) inches. If you have questions about this Delta AC-DC power supply please contact us through our web chat or call us (408-733-9090).
Delta DRL-24V480W1EN Features
View More
DRL-480W Series Description: The Delta DRL-480W Series AC-DC DIN rail power supplies, part of the LYTE II family, provide a powerful 480-watt output with voltage options of 24V and 48V, designed to meet the demands of high-capacity industrial systems. These units are engineered for cost-effective performance, offering reliable power for applications such as large-scale industrial automation, renewable energy systems, and heavy-duty manufacturing equipment. Featuring a universal AC input range (85-264V) and convection-cooled operation, the DRL-480W Series delivers consistent full-power performance from -30°C to +50°C, with derating up to +70°C at 230 Vac, ensuring stability in challenging environments. Its constant current mode supports inductive and capacitive loads, making it suitable for powering complex systems like large motor drives and industrial control units. Certified to IEC/EN/UL 62368-1 safety standards and compliant with RoHS environmental requirements, these power supplies adhere to strict global regulations. They also meet EN 61000-6-4 Class B emission and EN 61000-6-2 immunity standards, reducing electromagnetic interference in rigorous industrial settings. With a compact, DIN rail-mountable design and exceptional efficiency, the DRL-480W Series is an optimal choice for engineers and system designers seeking high-power, dependable solutions for critical industrial applications.
For specific information on the Delta DRL-24V480W1EN please view the datasheet
Other models in the DRL-480W series: 48 volt-DRL-48V480W1EN
| Price | $98.49 |
|---|---|
| Manufacturer | Delta |
| Application | Industrial (ITE) |
| Package Type | DIN Rail |
| AC Input (VAC) | 90~264 |
| Number Outputs | 1 |
| Voltage - Output 1 (VDC) | 24 |
| Output Current 1 | 20A |
| Power Output (W) | 480 |
| Length | 4.87in (123.70mm) |
| Width | 2.20in (55.88mm) |
| Height | 4.60in (116.84mm) |
| Cooling | Fanless |
| Operating Temperature | -40C ~ 70C (with derating) |
| Efficiency | 92% |
| Weight (lbs) | 1.910000 |
| Country of Origin | India |
| Product Series | DRL-480W |
Get Help Finding the Right Power Supply: Power Requirement Form
