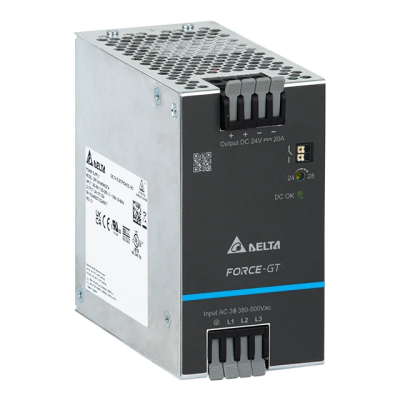

Delta DRF-24V480W3GBA (480W 24V)
- Buy 20 for $169.62 each and save 3%
- Buy 50 for $166.69 each and save 4%
- Buy 100 for $164.08 each and save 6%
Delta Single Output, Conformal Coating, Industrial AC-DC Converter, DIN Rail Package, 480 Watts, Input Voltage Range: 320~575 (3-Phase/2-Phase)VAC, Output Voltage: 24VDC, Output Current: 20A, Connection: Screw Terminal
More Details
The Delta DRF-24V480W3GBA is a industrial, 1 output, AC-DC power supply. The nominal output is 24 Volts DC at 20 amps, with a maximum power output of 480 watts. It accepts an AC input voltage of 320~575 (3-Phase/2-Phase) and has an efficiency rating of 92%. The DRF-24V480W3GBA has a DIN Rail mount package type with an operating temperature range of -40C to +70C. It features a fanless design for silent operation and its dimensions are 4.88 (L) x 2.56 (W) x 5.01 (H) inches. If you have questions about this Delta AC-DC power supply please contact us through our web chat or call us (408-733-9090).
Delta DRF-24V480W3GBA Features
View More
DRF-480W (3-Phase) Series Description: The Delta DRF-480W (3-Phase) Series AC-DC DIN rail power supply, a premium offering within the Force-GT family, delivers a formidable 480-watt output with voltage options of 24V and 48V, fortified with a conformal coating to endure dust, pollutants, and corrosive elements in extreme industrial environments. Engineered for 3-phase (320-575Vac) or 2-phase (340-575Vac) AC input systems (refer to datasheet for derating), this unit is tailored for high-power applications such as utility-scale energy storage systems, advanced manufacturing lines, and large telecommunications hubs. Its superior power density and efficiency, coupled with a fanless, convection-cooled design, ensure steadfast performance from -30°C to +70°C, with full power sustained up to +50°C at rated input. The constant current mode with overcurrent protection optimizes it for charging applications, effortlessly supporting high-capacity battery banks and capacitive loads in systems like industrial robotics. Certified to IEC/EN/UL 62368-1 safety standards and RoHS-compliant, the DRF-480W (3-Phase) adheres to stringent global environmental and regulatory standards. It also meets EN 61000-6-4 Class B emission and EN 61000-6-2 immunity standards, minimizing electromagnetic interference in intricate industrial settings. Compact, DIN rail-mountable, and designed for enduring reliability, this power supply is the go-to solution for engineers requiring a high-capacity, 3-phase-compatible power source for critical industrial operations.
For specific information on the Delta DRF-24V480W3GBA please view the datasheet
Other models in the DRF-480W (3-Phase) series: 48 volt-DRF-48V480W3GBA
| Price | $174.33 |
|---|---|
| Manufacturer | Delta |
| Application | Industrial (ITE) |
| Package Type | DIN Rail |
| AC Input (VAC) | 320~575 (3-Phase/2-Phase) |
| Number Outputs | 1 |
| Voltage - Output 1 (VDC) | 24 |
| Output Current 1 | 20A |
| Power Output (W) | 480 |
| Length | 4.88in (123.95mm) |
| Width | 2.56in (65.02mm) |
| Height | 5.01in (127.25mm) |
| Cooling | Fanless |
| Operating Temperature | -40C ~ 70C (with derating) |
| Efficiency | 92% |
| Weight (lbs) | 2.650000 |
| Country of Origin | India |
| Product Series | DRF-480W (3-Phase) |
Get Help Finding the Right Power Supply: Power Requirement Form
