MEAN WELL LED AC-DC, 65 Watts, 20VDC output, Constant Voltage + Constant Current, 5yr warranty, IP65
More Details
The MEAN WELL HVG-65-20AB is a LED Power Supply, good to use in applications like architectural lighting, emergency lighting, LED display and singage. This Constant Voltage and Constant Current LED driver has a rated output voltage of 20VDC and an output current of 0~3.25A (max power output is 65 watts). For the constant current voltage region and the constant current range of this LED driver please refer to the datasheet, which can be found on the product page. The metal case HVG-65-20AB is a Dimmable driver, with an IP65 rating and 5 year manufacturer's warranty. This unit has Hazardous Location (type HL) rating, meaning it has undergone harsh environmental tests to ensure it'll power LEDs under such conditions. Its dimensions are 189 (L) x 61.5 (W) x 36.8 (H) mm and the operational temperature range is -40C to +80C. The AC input range is 180~528 VAC, with an overall efficiency rating of 89% and is Class 2 rated. If you have any questions please contact our LED Power Experts through our web chat or call (408-733-9090).$62.30 As low as $55.10MEAN WELL LED AC-DC, 60 Watts, 20VDC output, Constant Voltage + Constant Current, 3yr warranty, IP64
More Details

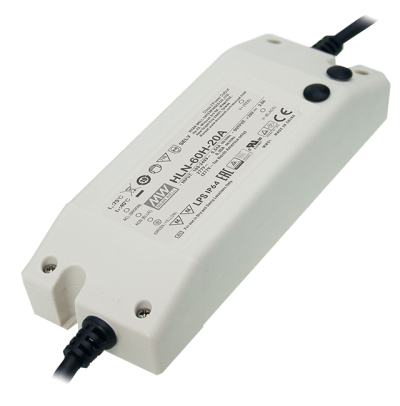

The MEAN WELL HLN-60H-20A is a LED Power Supply, good to use in applications like architectural lighting, emergency lighting, LED display and singage. This Constant Voltage and Constant Current LED driver has a rated output voltage of 20VDC and an output current of 0~3.0A (max power output is 60 watts). For the constant current voltage region and the constant current range of this LED driver please refer to the datasheet, which can be found on the product page. The plastic case HLN-60H-20A is a non-dimming driver, with an IP64 rating and 3 year manufacturer's warranty. Its dimensions are 161 (L) x 61.5 (W) x 35 (H) mm and the operational temperature range is -40C to +50C. The AC input range is 90~305 VAC, with an overall efficiency rating of 89% and is Class 2 rated. If you have any questions please contact our LED Power Experts through our web chat or call (408-733-9090).$38.24 As low as $37.63MEAN WELL LED AC-DC, 80 Watts, 20VDC output, Constant Voltage + Constant Current, 3yr warranty, IP64
More Details
The MEAN WELL HLN-80H-20B is a LED Power Supply, good to use in applications like architectural lighting, emergency lighting, LED display and singage. This Constant Voltage and Constant Current LED driver has a rated output voltage of 20VDC and an output current of 0~4.0A (max power output is 80 watts). For the constant current voltage region and the constant current range of this LED driver please refer to the datasheet, which can be found on the product page. The plastic case HLN-80H-20B is a Dimmable driver, with an IP64 rating and 3 year manufacturer's warranty. Its dimensions are 181 (L) x 61.5 (W) x 35 (H) mm and the operational temperature range is -40C to +50C. The AC input range is 90~305 VAC, with an overall efficiency rating of 90% and is Class 2 rated. If you have any questions please contact our LED Power Experts through our web chat or call (408-733-9090).$46.93 As low as $46.18MEAN WELL LED AC-DC, 80 Watts, 20VDC output, Constant Voltage + Constant Current, 3yr warranty, IP64
More Details
The MEAN WELL HLN-80H-20A is a LED Power Supply, good to use in applications like architectural lighting, emergency lighting, LED display and singage. This Constant Voltage and Constant Current LED driver has a rated output voltage of 20VDC and an output current of 0~4.0A (max power output is 80 watts). For the constant current voltage region and the constant current range of this LED driver please refer to the datasheet, which can be found on the product page. The plastic case HLN-80H-20A is a non-dimming driver, with an IP64 rating and 3 year manufacturer's warranty. Its dimensions are 181 (L) x 61.5 (W) x 35 (H) mm and the operational temperature range is -40C to +50C. The AC input range is 90~305 VAC, with an overall efficiency rating of 90% and is Class 2 rated. If you have any questions please contact our LED Power Experts through our web chat or call (408-733-9090).$46.93 As low as $46.18MEAN WELL LED AC-DC, 60 Watts, 20VDC output, Constant Voltage + Constant Current, 3yr warranty, IP64
More Details
The MEAN WELL HLN-60H-20B is a LED Power Supply, good to use in applications like architectural lighting, emergency lighting, LED display and singage. This Constant Voltage and Constant Current LED driver has a rated output voltage of 20VDC and an output current of 0~3.0A (max power output is 60 watts). For the constant current voltage region and the constant current range of this LED driver please refer to the datasheet, which can be found on the product page. The plastic case HLN-60H-20B is a Dimmable driver, with an IP64 rating and 3 year manufacturer's warranty. Its dimensions are 161 (L) x 61.5 (W) x 35 (H) mm and the operational temperature range is -40C to +50C. The AC input range is 90~305 VAC, with an overall efficiency rating of 89% and is Class 2 rated. If you have any questions please contact our LED Power Experts through our web chat or call (408-733-9090).$38.24 As low as $37.63MEAN WELL LED AC-DC, 40 Watts, 20VDC output, Constant Voltage + Constant Current, 3yr warranty, IP64
More Details
The MEAN WELL HLN-40H-20B is a LED Power Supply, good to use in applications like architectural lighting, emergency lighting, LED display and singage. This Constant Voltage and Constant Current LED driver has a rated output voltage of 20VDC and an output current of 0~2.00A (max power output is 40 watts). For the constant current voltage region and the constant current range of this LED driver please refer to the datasheet, which can be found on the product page. The plastic case HLN-40H-20B is a Dimmable driver, with an IP64 rating and 3 year manufacturer's warranty. Its dimensions are 161 (L) x 61.5 (W) x 35 (H) mm and the operational temperature range is -40C to +50C. The AC input range is 90~305 VAC, with an overall efficiency rating of 88% and is Class 2 rated. If you have any questions please contact our LED Power Experts through our web chat or call (408-733-9090).$34.76 As low as $34.21MEAN WELL LED AC-DC, 40 Watts, 20VDC output, Constant Voltage + Constant Current, 3yr warranty, IP64
More Details
The MEAN WELL HLN-40H-20A is a LED Power Supply, good to use in applications like architectural lighting, emergency lighting, LED display and singage. This Constant Voltage and Constant Current LED driver has a rated output voltage of 20VDC and an output current of 0~2.00A (max power output is 40 watts). For the constant current voltage region and the constant current range of this LED driver please refer to the datasheet, which can be found on the product page. The plastic case HLN-40H-20A is a non-dimming driver, with an IP64 rating and 3 year manufacturer's warranty. Its dimensions are 161 (L) x 61.5 (W) x 35 (H) mm and the operational temperature range is -40C to +50C. The AC input range is 90~305 VAC, with an overall efficiency rating of 88% and is Class 2 rated. If you have any questions please contact our LED Power Experts through our web chat or call (408-733-9090).$34.76 As low as $34.21
